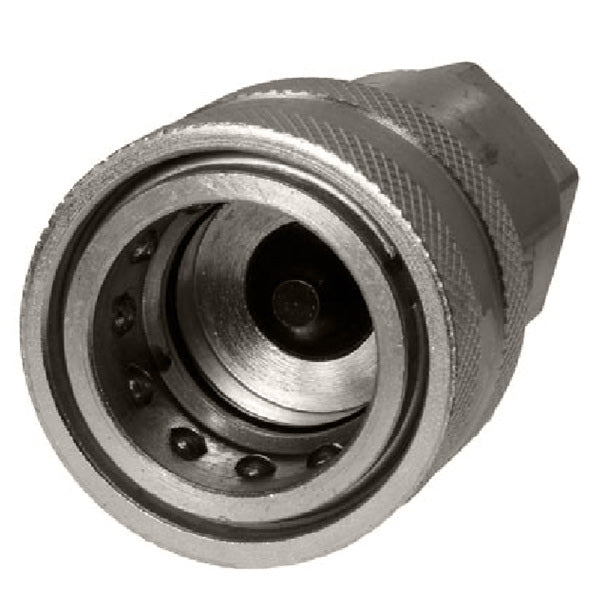

QC-ISOA19-F-12S by Couplamatic | Hydraulic Quick Coupler | ISO A Series | 3/4" Body Size x 1-1/16x12 Female SAE | Socket | Zinc Plated

QC-ISOA19-F-12S by Couplamatic | Hydraulic Quick Coupler | ISO A Series | 3/4" Body Size x 1-1/16x12 Female SAE | Socket | Zinc Plated

Save $18.77 Save $18.77
$46.93
$46.93 - $46.93
$46.93
$28.16
$28.16 - $28.16
$28.16

Couplamatic Inc
Hydraulic Quick Couplers - ISO A Series Couplers
Specifications for Variant SKU: QC-ISOA19-F-12S Couplamatic
Series: ISO A Series
Shape (Orientation): Straight
Features:
  • ISO A Series Couplers are made to the ISO 7241:2014 Series A Standard.
  • The couplers are a high quality product with nitrile seals and balanced spings in the poppets.
  • Zinc Plating
Temperature:
  • -40°F (-40°C) to 223°F (106°C).
Applications:
  • Industrial
  • Agriculture
  • Mobile
Part Number Body
Size		 Body
Size
(ISO)		 Coupler
Gender		 Thread
Size		 Working
Pressure		 Coupled
Burst		 Female
Burst		 Male
Burst		 "A"Length "B"Length "C"Length
QC-ISOA06-F-04N 1/4" 06 Female 1/4-18 NPT 5800 PSI 31900 PSI 26100 PSI 27550 PSI 2.8" 1.9" -
QC-ISOA06-M-04N 1/4" 06 Male 1/4-18 NPT 5800 PSI 31900 PSI 26100 PSI 27550 PSI 2.8" - 1.4"

QC-ISOA10-F-06N 3/8" 10 Female 3/8-18 NPT 5075 PSI 26100 PSI 23200 PSI 24650 PSI 3.0" 2.2" -
QC-ISOA10-M-06N 3/8" 10 Male 3/8-18 NPT 5075 PSI 26100 PSI 23200 PSI 24650 PSI 3.0" - 1.4"

QC-ISOA10-F-06S 3/8" 10 Female 9/16x18 SAE 5075 PSI 26100 PSI 23200 PSI 24650 PSI 3.0" 2.2" -
QC-ISOA10-M-06S 3/8" 10 Male 9/16x18 SAE 5075 PSI 26100 PSI 23200 PSI 24650 PSI 3.0" - 1.4"

QC-AGPT12-F-08N 1/2" 12 Female 1/2-14 NPT 4640 PSI 18850 PSI 20300 PSI 21750 PSI 3.5" 2.6" -
QC-AGPT12-M-08N 1/2" 12 Male 1/2-14 NPT 4640 PSI 18850 PSI 20300 PSI 21750 PSI 3.5" - 1.7"

QC-AGPT12-F-08S 1/2" 12 Female 3/4x16 SAE 4640 PSI 18850 PSI 20300 PSI 21750 PSI 3.5" 2.6" -
QC-AGPT12-M-08S 1/2" 12 Male 3/4x16 SAE 4640 PSI 18850 PSI 20300 PSI 21750 PSI 3.5" - 1.7"

QC-AGPT12-F-10S 1/2" 12 Female 7/8x14 SAE 4640 PSI 18850 PSI 20300 PSI 21750 PSI 3.5" 2.6" -
QC-AGPT12-M-10S 1/2" 12 Male 7/8x14 SAE 4640 PSI 18850 PSI 20300 PSI 21750 PSI 3.5" - 1.7"

QC-ISOA19-F-12N 3/4" 19 Female 3/4-14 NPT 4350 PSI 18850 PSI 17400 PSI 18850 PSI 4.4" 3.1" -
QC-ISOA19-M-12N 3/4" 19 Male 3/4-14 NPT 4350 PSI 18850 PSI 17400 PSI 18850 PSI 4.4" - 2.2"

QC-ISOA19-F-12S 3/4" 19 Female 1-1/16x12 SAE 4350 PSI 18850 PSI 17400 PSI 18850 PSI 4.4" 3.1" -
QC-ISOA19-M-12S 3/4" 19 Male 1-1/16x12 SAE 4350 PSI 18850 PSI 17400 PSI 18850 PSI 4.4" - 2.2"

QC-ISOA25-F-16N 1" 25 Female 1-11-1/2 NPT 3625 PSI 17400 PSI 14500 PSI 15950 PSI 4.7" 3.7" -
QC-ISOA25-M-16N 1" 25 Male 1-11-1/2 NPT 3625 PSI 17400 PSI 14500 PSI 15950 PSI 4.7" - 2.4"
Couplamatic Systems Inc

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
