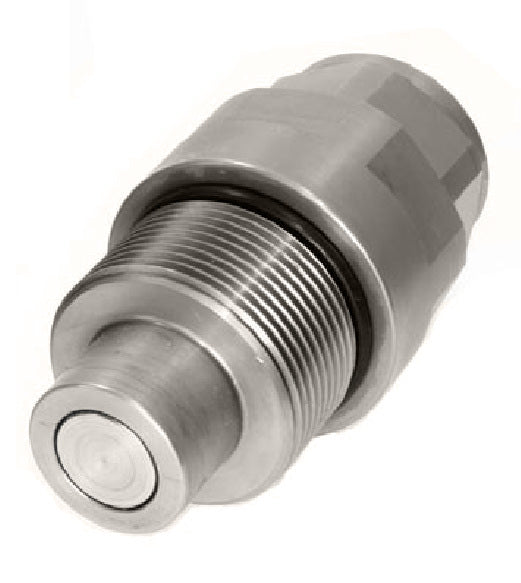

QC-SCFF12-M-08N by Couplamatic | Hydraulic Quick Coupler | SCFF Series | Screw Connect Flat Face | 1/2" Body Size x 1/2-14 Female NPT | Plug | Zinc Nickel Plated

Save $81.91

$204.78

$204.78 - $204.78

$204.78

$122.87

$122.87 - $122.87

$122.87

Couplamatic Inc
Hydraulic Quick Couplers - SCFF Series Screw Connect Flat Face Couplers

Specifications for Variant SKU: QC-SCFF12-M-08N Couplamatic
Series:	SCFF Series
Shape (Orientation):	Straight

Hydraulic Quick Coupler

SCFF Series Screw Connect Flat Face Quick Coupler

Screw connect flat face couplers — the strength of a threaded connection with flat face fluid retention.

1

What are the main product features?

SCFF Series Screw Connect Flat Face Couplers prevent fluid loss during disconnection and allow minimal inclusion of contaminants during connection.
The screw connection strengthens the coupler and allows connection and disconnection with residual pressure in the circuit.
Order the halves you need — male and female bodies are listed separately in the chart below.
Dimensions given for installation — "A", "B" and "C" lengths are in the chart so the coupler can be checked against the space available.

2

What is this coupler used for?

Industrial
Agriculture
Mining
Leak Free Environments
High Pressure Pulse
Hammer Circuits

3

What are the key specifications?

Style

Screw connect flat face

Seals

Nitrile

Plating

Zinc nickel, for higher corrosion resistance

Temperature

-40°F (-40°C) to 223°F (106°C)

4

Which sizes and configurations are available?

SCFF Series quick coupler dimension drawing

Part Number	Body Size	Body Size (ISO)	Coupler Gender	Thread Size	Working Pressure	Coupled Burst	Female Burst	Male Burst	"A" Length	"B" Length	"C" Length
QC-SCFF12-F-08N	1/2"	12	Female	1/2-14 NPT	7975 PSI	20300 PSI	14500 PSI	20300 PSI	6.0"	3.3"	—
QC-SCFF12-M-08N	1/2"	12	Male	1/2-14 NPT	7975 PSI	20300 PSI	14500 PSI	20300 PSI	6.0"	—	3.3"
—
QC-SCFF12-F-12S	1/2"	12	Female	1-1/16x12 SAE	7975 PSI	20300 PSI	14500 PSI	20300 PSI	6.0"	3.3"	—
QC-SCFF12-M-12S	1/2"	12	Male	1-1/16x12 SAE	7975 PSI	20300 PSI	14500 PSI	20300 PSI	6.0"	—	3.3"
—
QC-SCFF19-F-12N	3/4"	19	Female	3/4-14 NPT	7250 PSI	20300 PSI	15225 PSI	20300 PSI	7.6"	4.0"	—
QC-SCFF19-M-12N	3/4"	19	Male	3/4-14 NPT	7250 PSI	20300 PSI	15225 PSI	20300 PSI	7.6"	—	4.5"
—
QC-SCFF19-F-12S	3/4"	19	Female	1-1/16x12 SAE	7250 PSI	20300 PSI	15225 PSI	20300 PSI	7.6"	4.0"	—
QC-SCFF19-M-12S	3/4"	19	Male	1-1/16x12 SAE	7250 PSI	20300 PSI	15225 PSI	20300 PSI	7.6"	—	4.5"

i

Male and female halves are sold separately. Confirm the body size, ISO body size and thread size match the mating half already on the machine before ordering.
