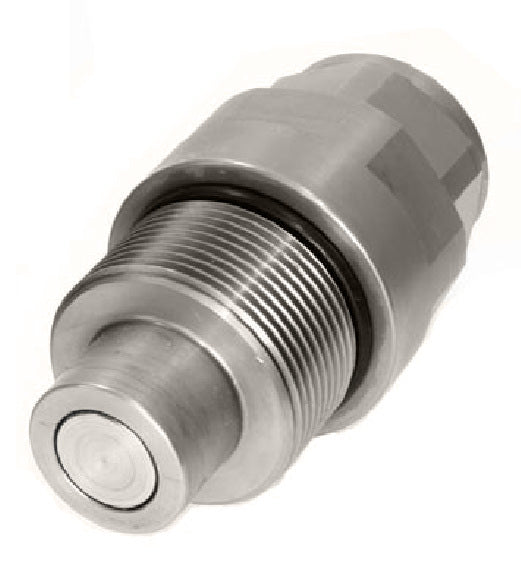

QC-SCFF12-M-12S by Couplamatic | Hydraulic Quick Coupler | SCFF Series | Screw Connect Flat Face | 1/2" Body Size x 1-1/16x12 Female SAE | Plug | Zinc Nickel Plated

QC-SCFF12-M-12S by Couplamatic | Hydraulic Quick Coupler | SCFF Series | Screw Connect Flat Face | 1/2" Body Size x 1-1/16x12 Female SAE | Plug | Zinc Nickel Plated

Save $72.85 Save $72.85
$182.13
$182.13 - $182.13
$182.13
$109.28
$109.28 - $109.28
$109.28

Couplamatic Inc
Hydraulic Quick Couplers - SCFF Series Screw Connect Flat Face Couplers
Specifications for Variant SKU: QC-SCFF12-M-12S Couplamatic
Series: SCFF Series
Shape (Orientation): Straight
Features:
  • SCFF Series Screw Connect Flat Face Couplers prevent fluid loss during disconnection and allow minimal inclusion of contaminants during connection.
  • The screw connection strengthens the coupler and allows connection and disconnection with residual pressure in the circuit.
  • They have nitrile seals and are zinc nickel plated for higher corrosion resistance.
  • Zinc Nickel Plating
Temperature:
  • -40°F (-40°C) to 223°F (106°C).
Applications:
  • Industrial
  • Agriculture
  • Mining
  • Leak Free Environments
  • High Pressure Pulse
  • Hammer Circuits
Part Number Body
Size		 Body
Size
(ISO)		 Coupler
Gender		 Thread
Size		 Working
Pressure		 Coupled
Burst		 Female
Burst		 Male
Burst		 "A"
Length		 "B"
Length		 "C"
Length
QC-SCFF12-F-08N 1/2" 12 Female 1/2-14 NPT 7975 PSI 20300 PSI 14500 PSI 20300 PSI 6.0" 3.3" -
QC-SCFF12-M-08N 1/2" 12 Male 1/2-14 NPT 7975 PSI 20300 PSI 14500 PSI 20300 PSI 6.0" - 3.3"

QC-SCFF12-F-12S 1/2" 12 Female 1-1/16x12 SAE 7975 PSI 20300 PSI 14500 PSI 20300 PSI 6.0" 3.3" -
QC-SCFF12-M-12S 1/2" 12 Male 1-1/16x12 SAE 7975 PSI 20300 PSI 14500 PSI 20300 PSI 6.0" - 3.3"

QC-SCFF19-F-12N 3/4" 19 Female 3/4-14 NPT 7250 PSI 20300 PSI 15225 PSI 20300 PSI 7.6" 4.0" -
QC-SCFF19-M-12N 3/4" 19 Male 3/4-14 NPT 7250 PSI 20300 PSI 15225 PSI 20300 PSI 7.6" - 4.5"

QC-SCFF19-F-12S 3/4" 19 Female 1-1/16x12 SAE 7250 PSI 20300 PSI 15225 PSI 20300 PSI 7.6" 4.0" -
QC-SCFF19-M-12S 3/4" 19 Male 1-1/16x12 SAE 7250 PSI 20300 PSI 15225 PSI 20300 PSI 7.6" - 4.5"
