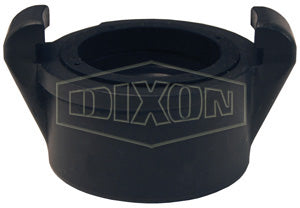

QTF100S-F Dixon Forged Aluminum Female 1/4 Turn Forestry Adapter - 1" Female NPSH

QTF100S-F Dixon Forged Aluminum Female 1/4 Turn Forestry Adapter - 1" Female NPSH

Save $46.33 Save $46.33
$115.82
$115.82 - $115.82
$115.82
$69.49
$69.49 - $69.49
$69.49

Dixon Fire Fittings
Fire Hose Couplings - Forged Forestry Coupling
Specifications for Variant SKU: QTF100S-F Dixon
Shape (Orientation): Straight
Ends Configuration: 1in Female NPS, 1/4in Turn Forestry Connection
Material(s): Aluminum
Features:
  • Maximum operating pressure: 300 PSI at ambient temperature 70°F (21°C).
  • Common quarter turn sexless head (a 1-1/2" QT fitting will mate with a 3/4" QT or 1" QT).
Part Number Thread Weight
(Lbs.)
Male 1/4 Turn Forestry Adapters
QTM75GHT-F 3/4" Male GHT 0.2000
QTM100S-F 1" Male NPSH 0.1700
QTM100T-F 1" Male NPT 0.2950
QTM150F-F 1-1/2" Male NST(NH) 0.2000
QTM150T-F 1-1/2" Male NPT 0.6000
Female 1/4 Turn Forestry Adapters
QTF75GHT-F 3/4" Female GHT 0.2000
QTF100S-F 1" Female NPSH 0.3000
QTF100T-F 1" Female NPT 0.5000
QTF150F-F 1-1/2" Female NST(NH) 0.3050
QTF150T-F 1-1/2" Female NPT 0.6000
Forestry Coupling Gasket
QTG-F Forestry Coupling Gasket 0.0200
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
