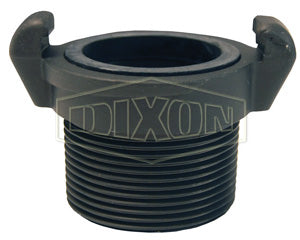

QTM100T-F Dixon Forged Aluminum Male 1/4 Turn Forestry Adapter - 1" Male NPT

QTM100T-F Dixon Forged Aluminum Male 1/4 Turn Forestry Adapter - 1" Male NPT

Save $42.93 Save $42.93
$107.33
$107.33 - $107.33
$107.33
$64.40
$64.40 - $64.40
$64.40

Dixon Fire Fittings
Fire Hose Couplings - Forged Forestry Coupling
Specifications for Variant SKU: QTM100T-F Dixon
Shape (Orientation): Straight
Ends Configuration: 1in Male NPT, 1/4in Turn Forestry Connection
Material(s): Aluminum
Features:
  • Maximum operating pressure: 300 PSI at ambient temperature 70°F (21°C).
  • Common quarter turn sexless head (a 1-1/2" QT fitting will mate with a 3/4" QT or 1" QT).
Part Number Thread Weight
(Lbs.)
Male 1/4 Turn Forestry Adapters
QTM75GHT-F 3/4" Male GHT 0.2000
QTM100S-F 1" Male NPSH 0.1700
QTM100T-F 1" Male NPT 0.2950
QTM150F-F 1-1/2" Male NST(NH) 0.2000
QTM150T-F 1-1/2" Male NPT 0.6000
Female 1/4 Turn Forestry Adapters
QTF75GHT-F 3/4" Female GHT 0.2000
QTF100S-F 1" Female NPSH 0.3000
QTF100T-F 1" Female NPT 0.5000
QTF150F-F 1-1/2" Female NST(NH) 0.3050
QTF150T-F 1-1/2" Female NPT 0.6000
Forestry Coupling Gasket
QTG-F Forestry Coupling Gasket 0.0200
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
