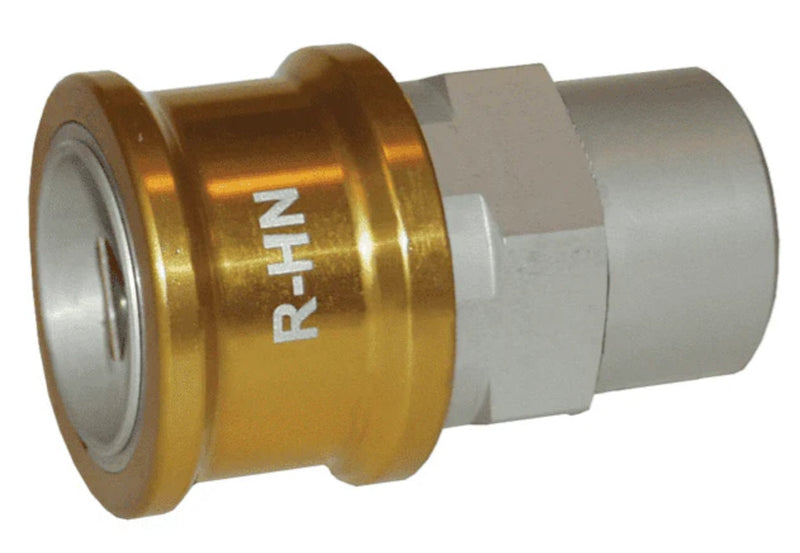

R-HN by Dixon Valve | FloMAX R-Series (Roll-Pin Style) | Hydraulic Oil Nozzle | 1" Female NPT | Gold | Anodized Aluminum

Save $41.48

$373.33

$373.33 - $373.33

$373.33

$331.85

$331.85 - $331.85

$331.85

Dixon Valve
FloMAX R-Series (Roll-Pin Style) | Hydraulic Oil Nozzle

Fully compatible and interchangeable with industry standards.

Quantity

Specifications for Variant SKU: R-HN Dixon
Brand:	FloMAX
Series:	R-HN Series
Shape (Orientation):	Straight
Ends Configuration:	1in Female NPT
Material(s):	Anodized Aluminum

Features:
Bright Gold. Standard roll-pin locking mechanism. Ergonomically engineered pullback.
Construction:
All-metal construction. Anodized aircraft grade aluminum non-wear components.

Hydraulic Oil Nozzles
Part Number	Description	Thread Size	Cross Over Part Numbers
Part Number	Description	Thread Size	Caterpillar®	Wiggins	FastFill
R-HN	Hydraulic Oil Nozzle	1" Female NPT	-	R17	N300R
R-HN-P	Hydraulic Oil Nozzle with Plug	1" Female NPT	-	-	N300RP
R-HN-PLUG	Hydraulic Oil Nozzle Plug	-	-	R1707	P300R

Hydraulic Oil Receivers
Part Number	Description	Male Thread Size	Female Thread Size	Cross Over Part Numbers
Part Number	Description	Male Thread Size	Female Thread Size	Caterpillar®	Wiggins	FastFill
R-HR	Hydraulic Oil Receiver	1.875-12 UN-2A	1.625-12 UN-2B	-	R18	R300R
R-HR-C	Hydraulic Oil Receiver with Cap	1.875-12 UN-2A	1.625-12 UN-2B	-	-	R300RC
R-HR-CAP	Hydraulic Oil Receiver Cap	-	-	-	R1805	C300R

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
