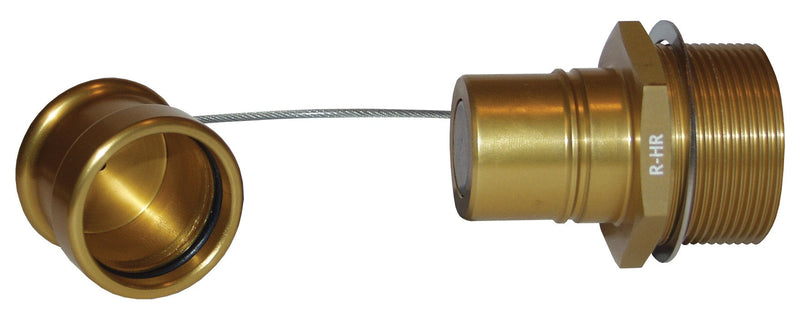

R-HR-C by Dixon Valve | FloMAX R-Series (Roll-Pin Style) | Hydraulic Oil Receiver with Cap | 1.875-12 UN-2A Male NPT x 1.625-12 UN-2B Female NPT | Gold | Anodized Aluminum

R-HR-C by Dixon Valve | FloMAX R-Series (Roll-Pin Style) | Hydraulic Oil Receiver with Cap | 1.875-12 UN-2A Male NPT x 1.625-12 UN-2B Female NPT | Gold | Anodized Aluminum

Save $137.26 Save $137.26
$343.15
$343.15 - $343.15
$343.15
$205.89
$205.89 - $205.89
$205.89

Dixon Valve
FloMAX R-Series (Roll-Pin Style) | Hydraulic Oil Receiver

Fully compatible and interchangeable with industry standards.
Specifications for Variant SKU: R-HR-C Dixon
Brand: FloMAX
Series: R-HR Series
Shape (Orientation): Straight
Material(s): Anodized Aluminum
Features:
  • Bright Gold.
  • Standard roll-pin locking mechanism.
  • Ergonomically engineered pullback.
Construction:
  • All-metal construction.
  • Anodized aircraft grade aluminum non-wear components.
Hydraulic Oil Nozzles
Part Number Description Thread Size Cross Over Part Numbers
Caterpillar® Wiggins FastFill
R-HN Hydraulic Oil Nozzle 1" Female NPT - R17 N300R
R-HN-P Hydraulic Oil Nozzle with Plug 1" Female NPT - - N300RP
R-HN-PLUG Hydraulic Oil Nozzle Plug - - R1707 P300R
Hydraulic Oil Receivers
Part Number Description Male Thread Size Female Thread Size Cross Over Part Numbers
Caterpillar® Wiggins FastFill
R-HR Hydraulic Oil Receiver 1.875-12 UN-2A 1.625-12 UN-2B - R18 R300R
R-HR-C Hydraulic Oil Receiver with Cap 1.875-12 UN-2A 1.625-12 UN-2B - - R300RC
R-HR-CAP Hydraulic Oil Receiver Cap - - - R1805 C300R

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
