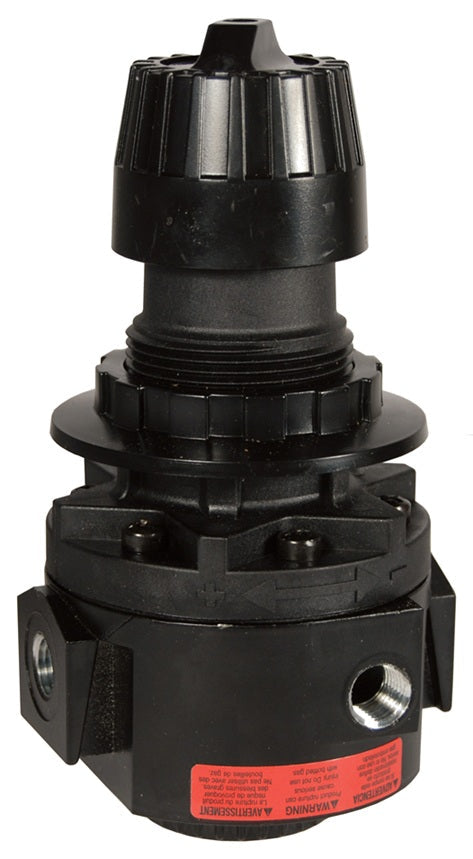

R26-04RH Wilkerson by Dixon Valve | R26-Series | High Pressure Standard Regulator | 1/2" Size | 185 SCFM | without Gauge | 0-250 PSI Adjusting Range

Save $91.19

$227.98

$227.98 - $227.98

$227.98

$136.79

$136.79 - $136.79

$136.79

Dixon Valve
Wilkerson | R26-Series | High Pressure Standard Regulator

0-250 PSI adjusting range.

Quantity

Specifications for Variant SKU: R26-04RH Dixon
Brand:	Wilkerson
Series:	R26-Series

Features:
Self-relieving standard. Non-rising push/pull locking adjustment knob. Panel mount nut standard. Excellent flow characteristics. Can be installed with the adjusting knob in any position. Two 1/4" NPT gauge ports standard on models without gauge, one 1/4" NPT gauge port standard on models with gauge can be used for additional outlet ports. Models supplied without gauge use a GC240 gauge.
Specifications:
FRL's are designed for air service only, unless otherwise indicated. Maximum operating conditions: 300 PSIG (20.7 bar) and 32°F to 150°F (0°C to 66°C) SCFM ratings at 100 PSIG inlet pressure.
Dimensions:

Part Number With Gauge	Part Number Without Gauge	Size	Flow (SCFM)
R26-03RG	R26-03R	3/8"	148 SCFM
R26-04RG	R26-04R	1/2"	185 SCFM
