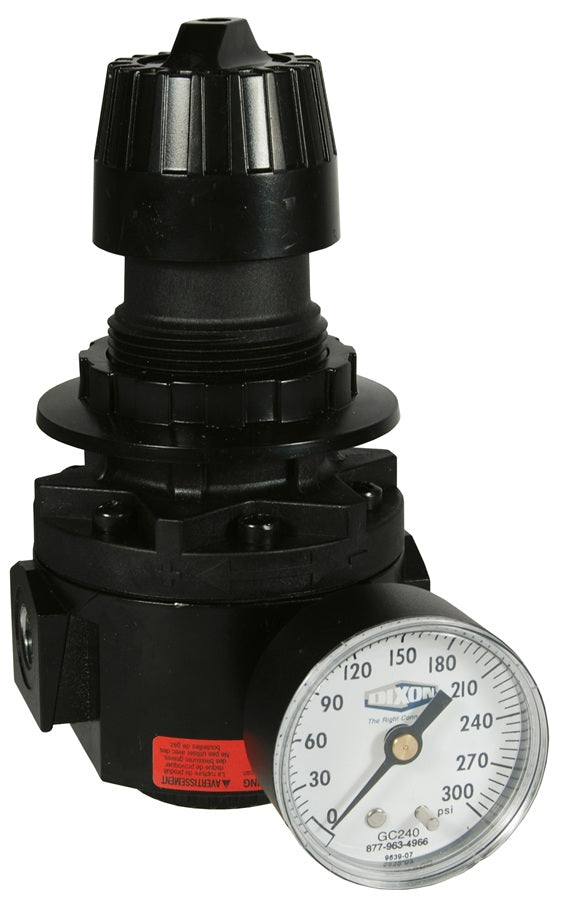

R26-04RHG Wilkerson by Dixon Valve | R26-Series | High Pressure Standard Regulator | 1/2" Size | 185 SCFM | with Gauge | 0-250 PSI Adjusting Range

Save $13.99

$165.63

$165.63 - $165.63

$165.63

$151.64

$151.64 - $151.64

$151.64

Dixon Valve
Wilkerson | R26-Series | High Pressure Standard Regulator

0-250 PSI adjusting range.

Quantity

Specifications for Variant SKU: R26-04RHG Dixon
Brand:	Wilkerson
Series:	R26-Series

Features:
Self-relieving standard. Non-rising push/pull locking adjustment knob. Panel mount nut standard. Excellent flow characteristics. Can be installed with the adjusting knob in any position. Two 1/4" NPT gauge ports standard on models without gauge, one 1/4" NPT gauge port standard on models with gauge can be used for additional outlet ports. Models supplied without gauge use a GC240 gauge.
Specifications:
FRL's are designed for air service only, unless otherwise indicated. Maximum operating conditions: 300 PSIG (20.7 bar) and 32°F to 150°F (0°C to 66°C) SCFM ratings at 100 PSIG inlet pressure.
Dimensions:

Part Number With Gauge	Part Number Without Gauge	Size	Flow (SCFM)
R26-03RG	R26-03R	3/8"	148 SCFM
R26-04RG	R26-04R	1/2"	185 SCFM
