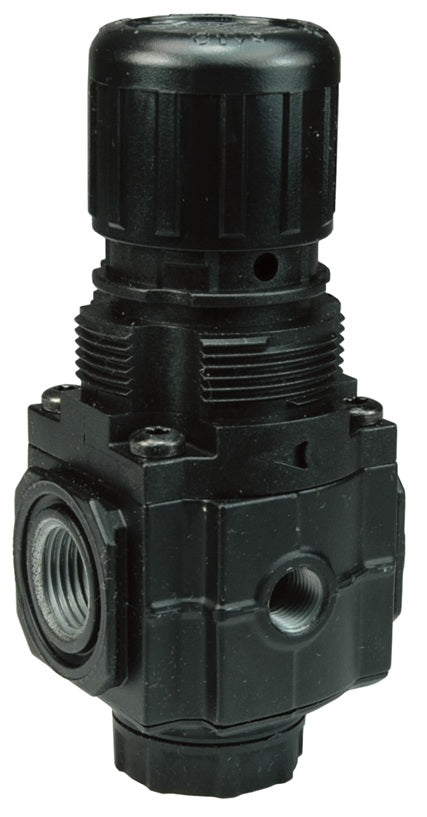

R72G-2R by Dixon Valve | R72G Series 1 | Sub-Compact Regulator | 1/4" Port Size | 70 SCFM | without Gauge | 5-150 PSI Pressure Range

Save $38.39

$95.98

$95.98 - $95.98

$95.98

$57.59

$57.59 - $57.59

$57.59

Dixon Valve
R72G Series 1 | Sub-Compact Regulator

Pressure range: 5-150 PSI

In-line or modular installation.

For air service only.

Specifications for Variant SKU: R72G-2R Dixon
Series:	R72G Series 1

Features:
In-line or modular installation. Two full flow 1/8" NPT gauge ports. RG models supplied with GC620 gauge.
Specifications:
Pressure range: 5-150 PSI Inlet pressure: 300 PSI Maximum temperature: 150°F (66°C)
Dimensions:

With Gauge Part Number	Without Gauge Part Number	Port Size	Flow (SCFM)
R72G-2RG	R72G-2R	1/4"	70 SCFM
R72G-3RG	R72G-3R	3/8"	70 SCFM
