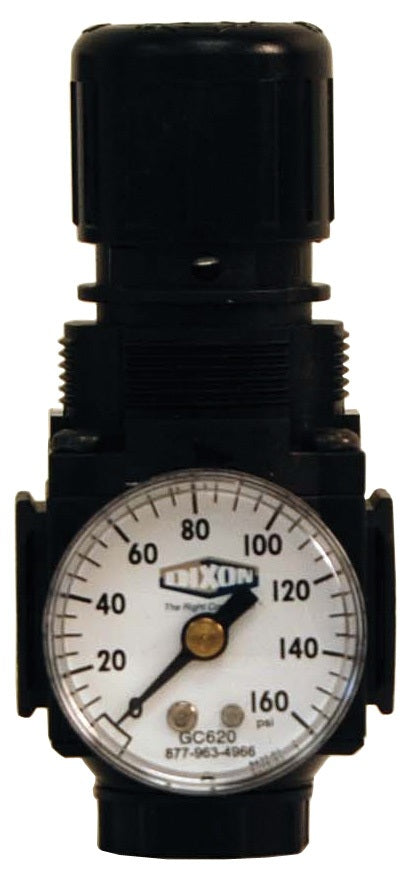

R72G-3RG by Dixon Valve | R72G Series 1 | Sub-Compact Regulator | 3/8" Port Size | 70 SCFM | with Gauge | 5-150 PSI Pressure Range

Save $48.16

$120.40

$120.40 - $120.40

$120.40

$72.24

$72.24 - $72.24

$72.24

Dixon Valve
R72G Series 1 | Sub-Compact Regulator

Pressure range: 5-150 PSI

In-line or modular installation.

For air service only.

Specifications for Variant SKU: R72G-3RG Dixon
Series:	R72G Series 1

Features:
In-line or modular installation. Two full flow 1/8" NPT gauge ports. RG models supplied with GC620 gauge.
Specifications:
Pressure range: 5-150 PSI Inlet pressure: 300 PSI Maximum temperature: 150°F (66°C)
Dimensions:

With Gauge Part Number	Without Gauge Part Number	Port Size	Flow (SCFM)
R72G-2RG	R72G-2R	1/4"	70 SCFM
R72G-3RG	R72G-3R	3/8"	70 SCFM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.

Shop Parts by Dixon Valve & Coupling
