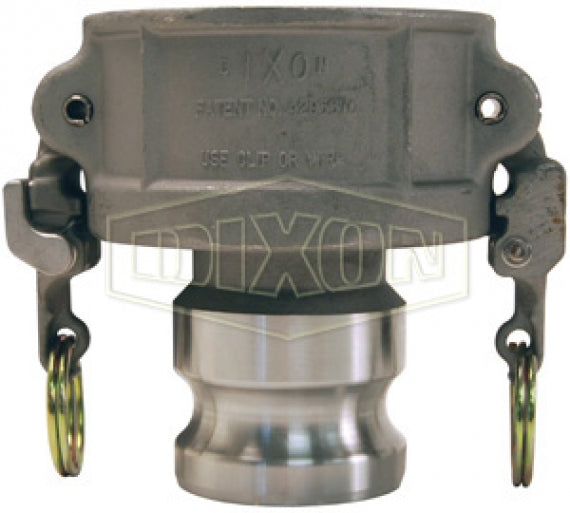

RDA2010EZ by Dixon Valve | EZ Boss-Lock Cam & Groove Reducer (Jump Size) | Type DA | 2" Coupler x 1" Adapter | 316 Stainless Steel

Name: RDA2010EZ by Dixon Valve | EZ Boss-Lock Cam & Groove Reducer (Jump Size) | Type DA | 2" Coupler x 1" Adapter | 316 Stainless Steel
Brand: Dixon
SKU: RDA2010EZ Dixon
Price: 250.89 USD
Availability: InStock

Save $167.26

$418.15

$418.15 - $418.15

$418.15

$250.89

$250.89 - $250.89

$250.89

Dixon Valve
EZ Boss-Lock Cam & Groove Jump Size Coupling | Type DA | Coupler x Adapter

Designed for use with liquids.

Specifications for Variant SKU: RDA2010EZ Dixon
Brand:	EZ Boss-Lock
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	2in Female Cam & Groove, 1in Male Cam & Groove
Material(s):	316 Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Construction:
Nitrile rubber gasket standard.
Safety Notes:
Under no circumstances should cam and groove couplings be used for compressed air or steam service! Under no circumstances should the EZ Boss-Lock cam arms be used on any fitting not specifically designed for their use. Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
Produced to interchange with all product produced to Commercial Item Description A-A-59326D.

356T6 Aluminum Part Number	316 Stainless Steel Part Number	Size Coupler x Adapter	Max. Operating Pressure
-	RDA2030BL*	2" x 1"	125 PSI
ADA2030EZ*	RDA2030EZ*	2" x 3"	125 PSI
ADA3020EZ	RDA3020EZ	3" x 2"	125 PSI
ADA3040EZ*	RDA3040EZ*	3" x 4"	100 PSI
ADA4020EZ*	-	4" x 2"	100 PSI
ADA4030EZ	RDA4030EZ	4" x 3"	100 PSI
ADA6040EZ*	RDA6040EZ	6" x 4"	75 PSI

* Parts are produced as a welded fabrication
