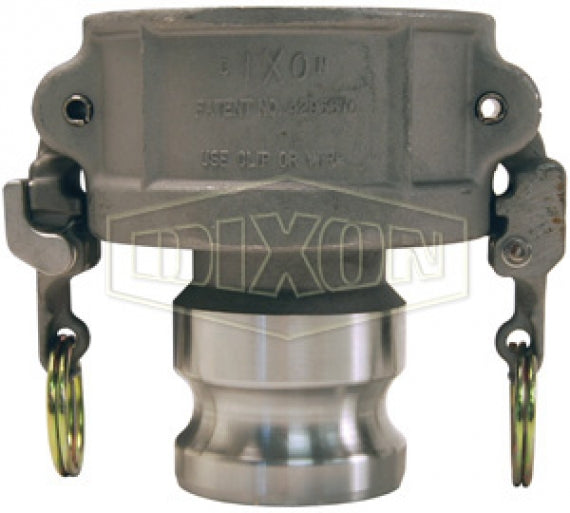

RDA3020EZ by Dixon Valve | EZ Boss-Lock Cam & Groove Reducer (Jump Size) | Type DA | 3" Coupler x 2" Adapter | 316 Stainless Steel

RDA3020EZ by Dixon Valve | EZ Boss-Lock Cam & Groove Reducer (Jump Size) | Type DA | 3" Coupler x 2" Adapter | 316 Stainless Steel

Save $174.37 Save $174.37
$435.93
$435.93 - $435.93
$435.93
$261.56
$261.56 - $261.56
$261.56

Dixon Valve
EZ Boss-Lock Cam & Groove Jump Size Coupling | Type DA | Coupler x Adapter

Designed for use with liquids.
Specifications for Variant SKU: RDA3020EZ Dixon
Brand: EZ Boss-Lock
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 3in Female Cam & Groove, 2in Male Cam & Groove
Material(s): 316 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Construction:
  • Nitrile rubber gasket standard.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
    • Under no circumstances should the EZ Boss-Lock cam arms be used on any fitting not specifically designed for their use. Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 316 Stainless Steel
Part Number		 Size
Coupler x Adapter		 Max. Operating Pressure
- RDA2030BL* 2" x 1" 125 PSI
ADA2030EZ* RDA2030EZ* 2" x 3" 125 PSI
ADA3020EZ RDA3020EZ 3" x 2" 125 PSI
ADA3040EZ* RDA3040EZ* 3" x 4" 100 PSI
ADA4020EZ* - 4" x 2" 100 PSI
ADA4030EZ RDA4030EZ 4" x 3" 100 PSI
ADA6040EZ* RDA6040EZ 6" x 4" 75 PSI

* Parts are produced as a welded fabrication
