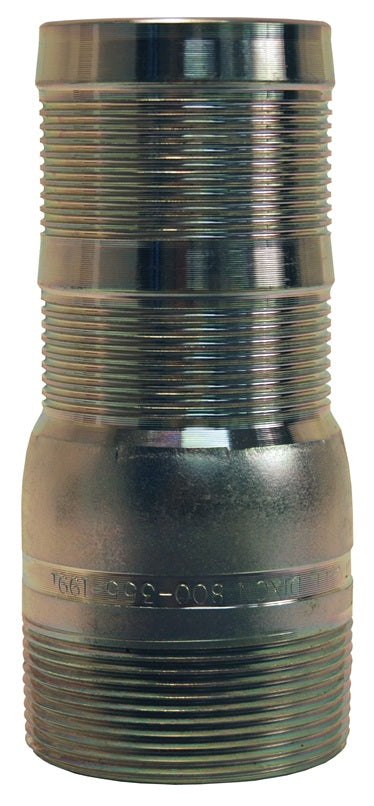

RST40PF by Dixon Valve | King Combination Nipple with PF Shank | 4" Male NPT x 4" PF Hose Shank | 100 PSI | 316 Stainless Steel

RST40PF by Dixon Valve | King Combination Nipple with PF Shank | 4" Male NPT x 4" PF Hose Shank | 100 PSI | 316 Stainless Steel

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Valve
King Combination Nipple with PF Shank | Male NPT x PF Hose Shank

This shank design was developed specifically for chemical transport hoses having crosslinked polyethylene (XLPE) or ultra high molecular weight polyethylene (UHMW) tubes, where shank retention can be a problem when using conventional band clamps.
Specifications for Variant SKU: RST40PF Dixon
Shape (Orientation): Straight
Ends Configuration: 4in Male NPT, 4in Hose Barb
Material(s): 316 Stainless Steel
Features:
  • PF shank King combination nipples have the same shank pattern as found on the PF style cam and groove fittings.
  • Recommended for discharge and suction service.
  • Not intended for compressed air.
Specifications:
  • Working pressure is given at 70°F (21°C) maximum.
  • The working pressure may vary with the construction of the hose, the type of clamping system used, and the application.
Plated Steel
Part Number		 316 Stainless Steel
Part Number		 Size Working PSI
ST25PF RST25PF 2" 250 PSI
ST35PF RST35PF 3" 125 PSI
ST40PF RST40PF 4" 100 PSI
ST60PF - 6" 75 PSI
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
