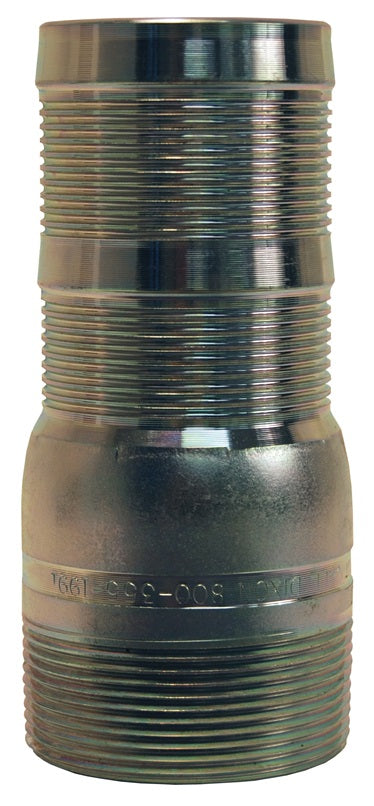

ST35PF by Dixon Valve | King Combination Nipple with PF Shank | 3" Male NPT x 3" PF Hose Shank | 125 PSI | Plated Steel

ST35PF by Dixon Valve | King Combination Nipple with PF Shank | 3" Male NPT x 3" PF Hose Shank | 125 PSI | Plated Steel

Save $5.03 Save $5.03
$45.24
$45.24 - $45.24
$45.24
$40.21
$40.21 - $40.21
$40.21

Dixon Valve
King Combination Nipple with PF Shank | Male NPT x PF Hose Shank

This shank design was developed specifically for chemical transport hoses having crosslinked polyethylene (XLPE) or ultra high molecular weight polyethylene (UHMW) tubes, where shank retention can be a problem when using conventional band clamps.
Specifications for Variant SKU: ST35PF Dixon
Shape (Orientation): Straight
Ends Configuration: 3in Male NPT, 3in Hose Barb
Material(s): Plated Steel
Features:
  • PF shank King combination nipples have the same shank pattern as found on the PF style cam and groove fittings.
  • Recommended for discharge and suction service.
  • Not intended for compressed air.
Specifications:
  • Working pressure is given at 70°F (21°C) maximum.
  • The working pressure may vary with the construction of the hose, the type of clamping system used, and the application.
Plated Steel
Part Number		 316 Stainless Steel
Part Number		 Size Working PSI
ST25PF RST25PF 2" 250 PSI
ST35PF RST35PF 3" 125 PSI
ST40PF RST40PF 4" 100 PSI
ST60PF - 6" 75 PSI
