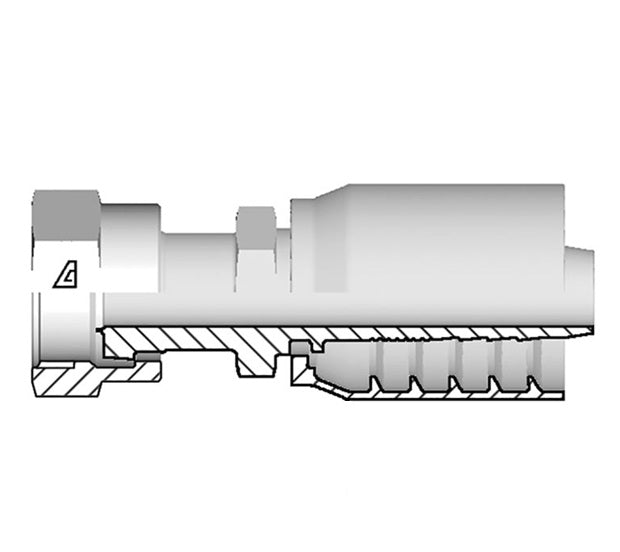

S-0808-FOFS Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -08 Female ORFS x -08 Hose ID | Steel

S-0808-FOFS Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -08 Female ORFS x -08 Hose ID | Steel

Save $11.86 Save $11.86
$41.50
$41.50 - $41.50
$41.50
$29.64
$29.64 - $29.64
$29.64

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | Female ORFS (O-Ring Face Seal) x Hose Barb
Specifications for Variant SKU: S-0808-FOFS Kuriyama
Brand: Alfabiotech Evolution
Series: S Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Female O-Ring Face Seal, 1/2in Hose Barb
Material(s): Steel
Compatible with the following Series: E3K Series  |   E4K Series  |   E5K Series  |   E5.5K Series  |   E6K Series  |   E5KST Series  |   E6KST Series
Part Number Hose ID Size F Thread C Cut-Off
Factor		 Hex Dia. Weight
Dash
Size		 in mm Dash
Size		 Size
(in) - TPI		 mm CH
mm		 CH1
mm		 lbs/each
S-0606-FOFS -06 3/8" 9.5mm -06 11/16-16 31.0mm 17mm 22mm 0.24 lbs
S-0808-FOFS -08 1/2" 12.7mm -08 13/16-16 36.1mm 22mm 24mm 0.32 lbs
S-1010-FOFS -10 5/8" 15.9mm -10 1-14 40.3mm 24mm 30mm 0.53 lbs
S-1212-FOFS -12 3/4" 19.0mm -12 1-3/16-12 44.1mm 30mm 36mm 0.84 lbs
S-1216-FOFS -12 3/4" 19.0mm -16 1-7/16-12 50.1mm 36mm 41mm 1.12 lbs
S-1616-FOFS -16 1" 25.4mm -16 1-7/16-12 53.1mm 36mm 41mm 1.33 lbs
S-1620-FOFS -16 1" 25.4mm -20 1-11/16-12 54.1mm 41mm 50mm 1.70 lbs
S-2020-FOFS -20 1-1/4" 31.8mm -20 1-11/16-12 55.9mm 46mm 50mm 2.03 lbs
S-2424-FOFS -24 1-1/2" 38.1mm -24 2-12 61.5mm 50mm 60mm 2.97 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
