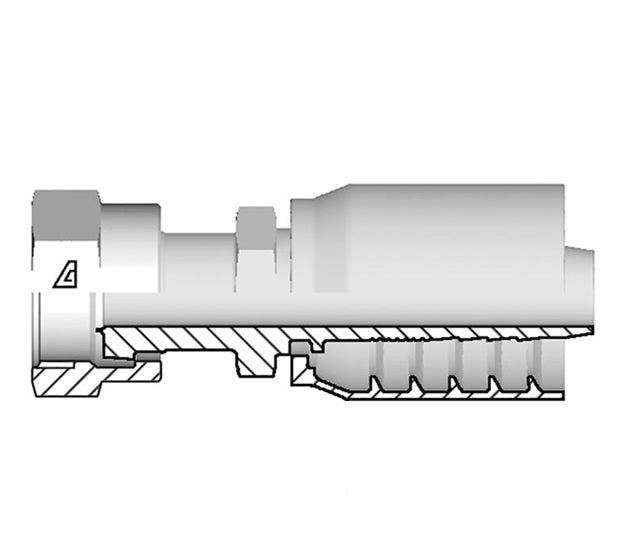

S-1620-FOFS Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -20 Female ORFS x -16 Hose ID | Steel

Name: S-1620-FOFS Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -20 Female ORFS x -16 Hose ID | Steel
Brand: Kuriyama
SKU: S-1620-FOFS Kuriyama
Price: 95.29 USD
Availability: InStock

Save $38.12

$133.41

$133.41 - $133.41

$133.41

$95.29

$95.29 - $95.29

$95.29

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | Female ORFS (O-Ring Face Seal) x Hose Barb

Specifications for Variant SKU: S-1620-FOFS Kuriyama
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	Straight
Ends Configuration:	1-1/4in Female O-Ring Face Seal, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	E3K Series \| E4K Series \| E5K Series \| E5.5K Series \| E6K Series \| E5KST Series \| E6KST Series


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	Hex Dia.		Weight
Part Number	Dash Size	in	mm	Dash Size	Size (in) - TPI	mm	CH mm	CH1 mm	lbs/each
S-0606-FOFS	-06	3/8"	9.5mm	-06	11/16-16	31.0mm	17mm	22mm	0.24 lbs
S-0808-FOFS	-08	1/2"	12.7mm	-08	13/16-16	36.1mm	22mm	24mm	0.32 lbs
S-1010-FOFS	-10	5/8"	15.9mm	-10	1-14	40.3mm	24mm	30mm	0.53 lbs
S-1212-FOFS	-12	3/4"	19.0mm	-12	1-3/16-12	44.1mm	30mm	36mm	0.84 lbs
S-1216-FOFS	-12	3/4"	19.0mm	-16	1-7/16-12	50.1mm	36mm	41mm	1.12 lbs
S-1616-FOFS	-16	1"	25.4mm	-16	1-7/16-12	53.1mm	36mm	41mm	1.33 lbs
S-1620-FOFS	-16	1"	25.4mm	-20	1-11/16-12	54.1mm	41mm	50mm	1.70 lbs
S-2020-FOFS	-20	1-1/4"	31.8mm	-20	1-11/16-12	55.9mm	46mm	50mm	2.03 lbs
S-2424-FOFS	-24	1-1/2"	38.1mm	-24	2-12	61.5mm	50mm	60mm	2.97 lbs
