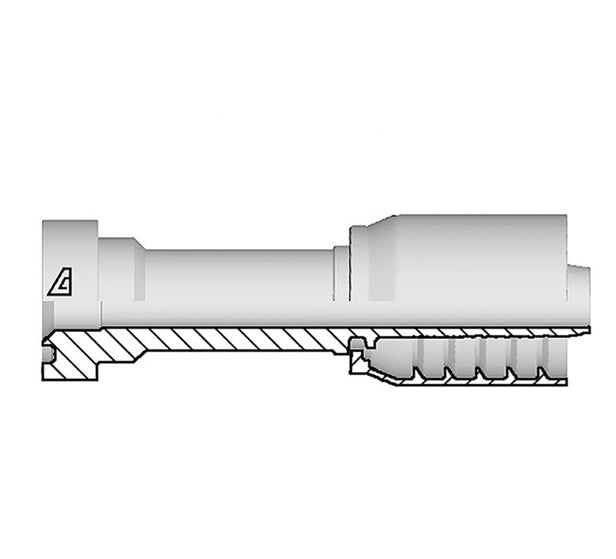

S-1212-CFLS Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -12 CAT Flange x -12 Hose ID | Steel

Name: S-1212-CFLS Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -12 CAT Flange x -12 Hose ID | Steel
Brand: Kuriyama
SKU: S-1212-CFLS Kuriyama
Price: 46.21 USD
Availability: InStock

Save $18.48

$64.69

$64.69 - $64.69

$64.69

$46.21

$46.21 - $46.21

$46.21

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | CAT Flange x Hose Barb

Specifications for Variant SKU: S-1212-CFLS Kuriyama
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in CAT Flange, 3/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	E3K Series \| E4K Series \| E5K Series \| E5.5K Series \| E6K Series \| E5KST Series \| E6KST Series


Part Number	Hose ID Size			Q Flange		C Cut-Off Factor	T Thickness	Flange Dash Size	Weight
Part Number	Dash Size	in	mm	in	mm	mm	mm	Flange Dash Size	lbs/each
S-1212-CFLS	-12	3/4"	19.0mm	1.63"	41.3mm	85.5mm	14.3mm	-12	1.14 lbs
S-1216-CFLS	-12	3/4"	19.0mm	1.88"	47.6mm	87.0mm	14.3mm	-16	1.29 lbs
S-1616-CFLS	-16	1"	25.4mm	1.88"	47.6mm	95.1mm	14.3mm	-16	1.71 lbs
S-1620-CFLS	-16	1"	25.4mm	2.13"	54.0mm	95.1mm	14.3mm	-20	1.89 lbs
S-2020-CFLS	-20	1-1/4"	31.8mm	2.13"	54.0mm	91.0mm	14.3mm	-20	2.26 lbs
S-2024-CFLS	-20	1-1/4"	31.8mm	2.50"	63.5mm	87.0mm	14.3mm	-20	2.61 lbs
S-2424-CFLS	-24	1-1/2"	38.1mm	2.50"	63.5mm	88.0mm	14.3mm	-24	3.12 lbs
S-3232-CFLS	-32	2"	50.8mm	3.12"	79.4mm	105.0mm	14.3mm	-32	3.50 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
