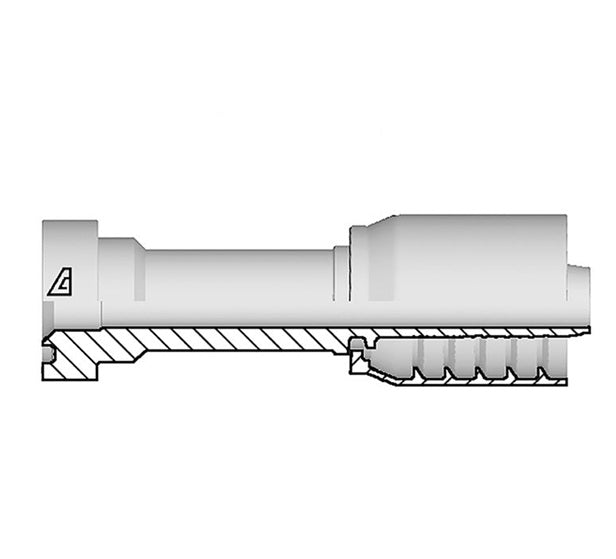

S-2024-CFLS Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -24 CAT Flange x -20 Hose ID | Steel

S-2024-CFLS Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -24 CAT Flange x -20 Hose ID | Steel

Save $43.63 Save $43.63
$152.70
$152.70 - $152.70
$152.70
$109.07
$109.07 - $109.07
$109.07

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | CAT Flange x Hose Barb
Specifications for Variant SKU: S-2024-CFLS Kuriyama
Brand: Alfabiotech Evolution
Series: S Series
Shape (Orientation): Straight
Ends Configuration: 1-1/2in CAT Flange, 1-1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: E3K Series  |   E4K Series  |   E5K Series  |   E5.5K Series  |   E6K Series  |   E5KST Series  |   E6KST Series
Part Number Hose ID Size Q Flange C Cut-Off
Factor		 T
Thickness		 Flange
Dash Size		 Weight
Dash
Size		 in mm in mm mm mm lbs/each
S-1212-CFLS -12 3/4" 19.0mm 1.63" 41.3mm 85.5mm 14.3mm -12 1.14 lbs
S-1216-CFLS -12 3/4" 19.0mm 1.88" 47.6mm 87.0mm 14.3mm -16 1.29 lbs
S-1616-CFLS -16 1" 25.4mm 1.88" 47.6mm 95.1mm 14.3mm -16 1.71 lbs
S-1620-CFLS -16 1" 25.4mm 2.13" 54.0mm 95.1mm 14.3mm -20 1.89 lbs
S-2020-CFLS -20 1-1/4" 31.8mm 2.13" 54.0mm 91.0mm 14.3mm -20 2.26 lbs
S-2024-CFLS -20 1-1/4" 31.8mm 2.50" 63.5mm 87.0mm 14.3mm -20 2.61 lbs
S-2424-CFLS -24 1-1/2" 38.1mm 2.50" 63.5mm 88.0mm 14.3mm -24 3.12 lbs
S-3232-CFLS -32 2" 50.8mm 3.12" 79.4mm 105.0mm 14.3mm -32 3.50 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
