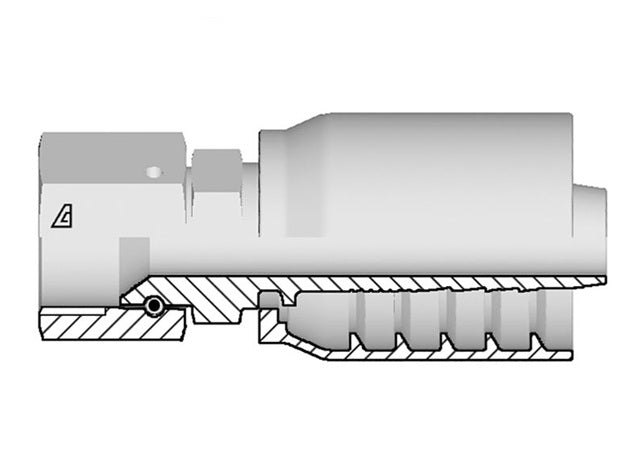

S-1212-FJDH Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | with Stem Hexagon | -12 Female 37° JIC Swivel x -12 Hose ID | Steel | Pack of 5

Save $58.40

$189.90

$189.90 - $189.90

$189.90

$131.50

$131.50 - $131.50

$131.50

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | Female 37° JIC Swivel x Hose Barb | with Stem Hexagon

Specifications for Variant SKU: S-1212-FJDH Kuriyama \| 5 \|
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Female JIC, 3/4in Hose Barb
Material(s):	Steel
Special Properties:	Swivel
Compatible with the following Series:	E3K Series \| E4K Series \| E5K Series \| E5.5K Series \| E6K Series \| E5KST Series \| E6KST Series


Part Number	Hose ID Size			F Thread		C Cut-Off Factor	Hex Dia.		Weight
Part Number	Dash Size	in	mm	Dash Size	Size (in) - TPI	mm	CH mm	CH1 mm	lbs/each
S-0606-FJDH	-06	3/8"	9.5mm	-06	9/16-18	22.0mm	17mm	19mm	0.20 lbs
S-0808-FJDH	-08	1/2"	12.7mm	-08	3/4-16	25.6mm	19mm	25mm	0.29 lbs
S-1010-FJDH	-10	5/8"	15.9mm	-10	7/8-14	28.3mm	24mm	27mm	0.51 lbs
S-1212-FJDH	-12	3/4"	19.1mm	-12	1-1/16-12	30.9mm	27mm	32mm	0.73 lbs
S-1616-FJDH	-16	1"	25.4mm	-16	1-5/16-12	37.7mm	36mm	41mm	1.30 lbs
S-1620-FJDH	-16	1"	25.4mm	-20	1-5/8-12	41.2mm	41mm	50mm	1.61 lbs
S-2020-FJDH	-20	1-1/4"	31.8mm	-20	1-5/8-12	43.0mm	46mm	50mm	2.05 lbs
S-2424-FJDH	-24	1-1/2"	38.1mm	-24	1-7/8-12	48.4mm	50mm	55mm	2.84 lbs
S-3232-FJDH	-32	2"	50.8mm	-32	2-1/2-12	59.2mm	65mm	70mm	5.15 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
