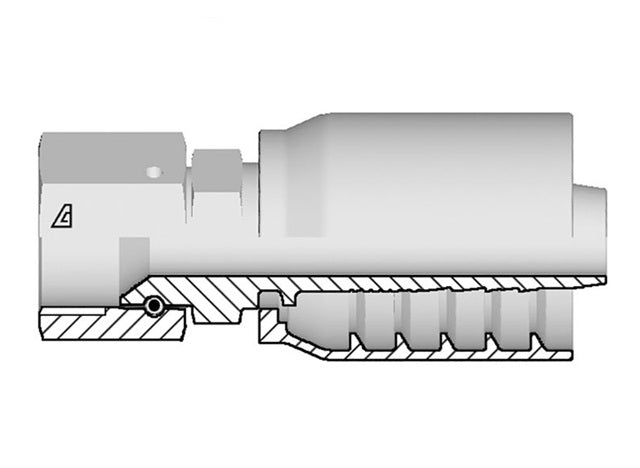

S-2424-FJDH Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | with Stem Hexagon | -24 Female 37° JIC Swivel x -24 Hose ID | Steel

S-2424-FJDH Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | with Stem Hexagon | -24 Female 37° JIC Swivel x -24 Hose ID | Steel

Save $7.46 Save $7.46
$67.17
$67.17 - $67.17
$67.17
$59.71
$59.71 - $59.71
$59.71

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | Female 37° JIC Swivel x Hose Barb | with Stem Hexagon
Specifications for Variant SKU: S-2424-FJDH Kuriyama
Brand: Alfabiotech Evolution
Series: S Series
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Female JIC, 1-1/2in Hose Barb
Material(s): Steel
Special Properties: Swivel
Compatible with the following Series: E3K Series  |   E4K Series  |   E5K Series  |   E5.5K Series  |   E6K Series  |   E5KST Series  |   E6KST Series
Part Number Hose ID Size F Thread C Cut-Off
Factor		 Hex Dia. Weight
Dash
Size		 in mm Dash
Size		 Size
(in) - TPI		 mm CH
mm		 CH1
mm		 lbs/each
S-0606-FJDH -06 3/8" 9.5mm -06 9/16-18 22.0mm 17mm 19mm 0.20 lbs
S-0808-FJDH -08 1/2" 12.7mm -08 3/4-16 25.6mm 19mm 25mm 0.29 lbs
S-1010-FJDH -10 5/8" 15.9mm -10 7/8-14 28.3mm 24mm 27mm 0.51 lbs
S-1212-FJDH -12 3/4" 19.1mm -12 1-1/16-12 30.9mm 27mm 32mm 0.73 lbs
S-1616-FJDH -16 1" 25.4mm -16 1-5/16-12 37.7mm 36mm 41mm 1.30 lbs
S-1620-FJDH -16 1" 25.4mm -20 1-5/8-12 41.2mm 41mm 50mm 1.61 lbs
S-2020-FJDH -20 1-1/4" 31.8mm -20 1-5/8-12 43.0mm 46mm 50mm 2.05 lbs
S-2424-FJDH -24 1-1/2" 38.1mm -24 1-7/8-12 48.4mm 50mm 55mm 2.84 lbs
S-3232-FJDH -32 2" 50.8mm -32 2-1/2-12 59.2mm 65mm 70mm 5.15 lbs
