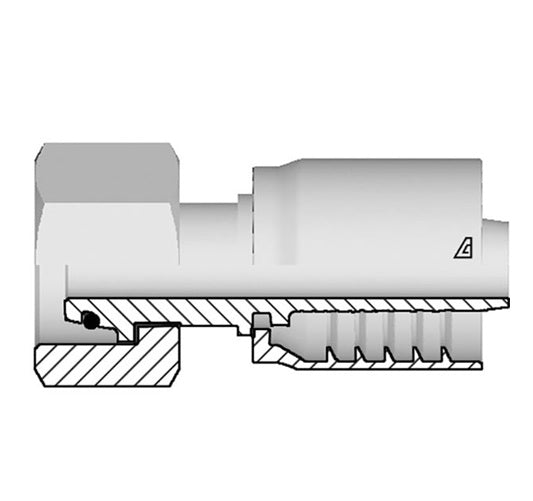

S-1236-FMOH Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Heavy | M36 Female Metric Swivel O-Ring 24° Seat x -12 Hose ID | Steel

Name: S-1236-FMOH Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Heavy | M36 Female Metric Swivel O-Ring 24° Seat x -12 Hose ID | Steel
Brand: Kuriyama
SKU: S-1236-FMOH Kuriyama
Price: 23.48 USD
Availability: InStock

Save $2.94

$26.42

$26.42 - $26.42

$26.42

$23.48

$23.48 - $23.48

$23.48

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | Female Metric Swivel O-Ring 24° Seat x Hose Barb

DIN 3865 Heavy

Quantity

Specifications for Variant SKU: S-1236-FMOH Kuriyama
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	Straight
Material(s):	Steel
Compatible with the following Series:	E3K Series \| E4K Series \| E5K Series \| E5.5K Series \| E6K Series \| E5KST Series \| E6KST Series


Part Number	Hose ID Size			F Thread		Tube OD	C Cut-Off Factor	Hex Dia. CH1	Weight
Part Number	Dash Size	in	mm	Dash Size	Size (in) - TPI	mm	mm	mm	lbs/each
S-1230-FMOH	-12	3/4"	19.0mm	-30	M30x2.0	-	37.4mm	36mm	0.83 lbs
S-1236-FMOH	-12	3/4"	19.0mm	-36	M36x2.0	-	41.7mm	46mm	1.11 lbs
S-1636-FMOH	-16	1"	25.4mm	-36	M36x2.0	-	46.6mm	46mm	1.49 lbs
S-1642-FMOH	-16	1"	25.4mm	-42	M42x2.0	-	45.8mm	50mm	1.49 lbs
S-2052-FMOH	-20	1-1/4"	31.8mm	-52	M52x2.0	-	50.0mm	60mm	2.31 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
