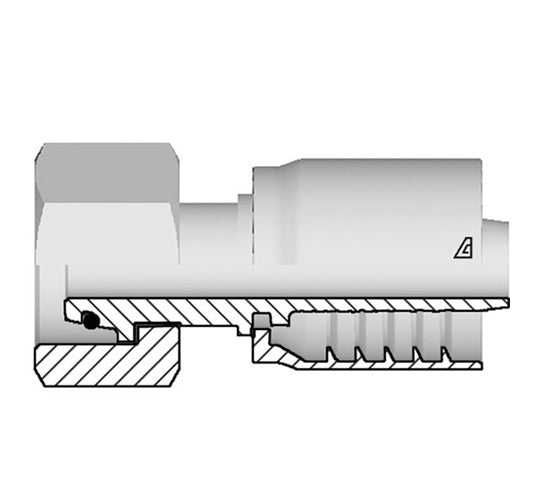

S-1642-FMOH Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Heavy | M42 Female Metric Swivel O-Ring 24° Seat x -16 Hose ID | Steel

S-1642-FMOH Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | DIN 3865 Heavy | M42 Female Metric Swivel O-Ring 24° Seat x -16 Hose ID | Steel

Save $21.84 Save $21.84
$76.45
$76.45 - $76.45
$76.45
$54.61
$54.61 - $54.61
$54.61

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | Female Metric Swivel O-Ring 24° Seat x Hose Barb

DIN 3865 Heavy
Specifications for Variant SKU: S-1642-FMOH Kuriyama
Brand: Alfabiotech Evolution
Series: S Series
Shape (Orientation): Straight
Material(s): Steel
Compatible with the following Series: E3K Series  |   E4K Series  |   E5K Series  |   E5.5K Series  |   E6K Series  |   E5KST Series  |   E6KST Series
Part Number Hose ID Size F Thread Tube
OD		 C
Cut-Off
Factor		 Hex Dia.
CH1		 Weight
Dash
Size		 in mm Dash
Size		 Size
(in) - TPI		 mm mm mm lbs/each
S-1230-FMOH -12 3/4" 19.0mm -30 M30x2.0 - 37.4mm 36mm 0.83 lbs
S-1236-FMOH -12 3/4" 19.0mm -36 M36x2.0 - 41.7mm 46mm 1.11 lbs
S-1636-FMOH -16 1" 25.4mm -36 M36x2.0 - 46.6mm 46mm 1.49 lbs
S-1642-FMOH -16 1" 25.4mm -42 M42x2.0 - 45.8mm 50mm 1.49 lbs
S-2052-FMOH -20 1-1/4" 31.8mm -52 M52x2.0 - 50.0mm 60mm 2.31 lbs
