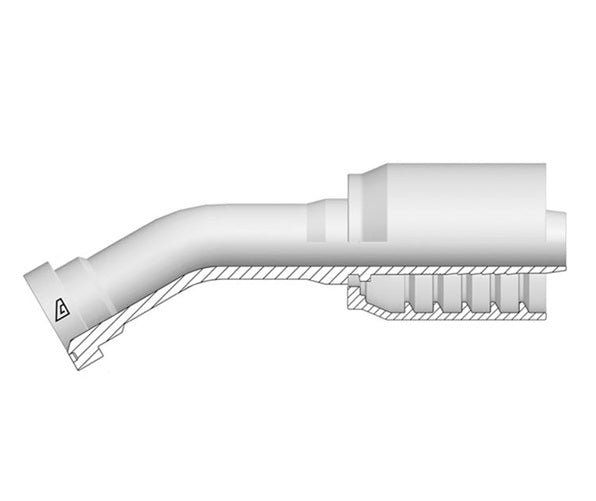

S-2020-CFL2 Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 22.5° Elbow | -20 CAT Flange x -20 Hose ID | Steel

S-2020-CFL2 Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 22.5° Elbow | -20 CAT Flange x -20 Hose ID | Steel

Save $64.28 Save $64.28
$224.99
$224.99 - $224.99
$224.99
$160.71
$160.71 - $160.71
$160.71

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | 22.5° Elbow | CAT Flange x Hose Barb
Specifications for Variant SKU: S-2020-CFL2 Kuriyama
Brand: Alfabiotech Evolution
Series: S Series
Shape (Orientation): 22.5 Degree
Ends Configuration: 1-1/4in CAT Flange, 1-1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: E3K Series  |   E4K Series  |   E5K Series  |   E5.5K Series  |   E6K Series  |   E5KST Series  |   E6KST Series
Part Number Hose ID Size Q Flange C Cut-Off
Factor		 T
Thickness		 D
Drop		 Flange
Dash Size		 Weight
Dash
Size		 in mm in mm mm mm mm lbs/each
S-1212-CFL2 -12 3/4" 19.0mm 1.63" 41.3mm 116mm 14.3mm 21.0mm -12 1.20 lbs
S-1216-CFL2 -12 3/4" 19.0mm 1.88" 47.6mm 121mm 14.3mm 17.0mm -16 1.40 lbs
S-1616-CFL2 -16 1" 25.4mm 1.88" 47.6mm 106mm 14.3mm 17.0mm -16 1.74 lbs
S-1620-CFL2 -16 1" 25.4mm 2.13" 54.0mm 129mm 14.3mm 18.0mm -20 2.18 lbs
S-2020-CFL2 -20 1-1/4" 31.8mm 2.13" 54.0mm 162mm 14.3mm 25.5mm -20 2.98 lbs
S-2024-CFL2 -20 1-1/4" 31.8mm 2.50" 63.5mm 170mm 14.3mm 22.0mm -24 3.41 lbs
Kuriyama

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
