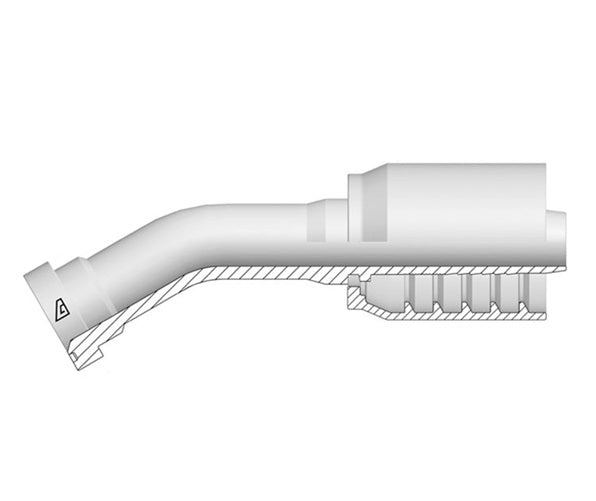

S-2024-CFL2 Alfagomma by Kuriyama | S Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | 22.5° Elbow | -24 CAT Flange x -20 Hose ID | Steel

Save $72.44

$253.54

$253.54 - $253.54

$253.54

$181.10

$181.10 - $181.10

$181.10

Kuriyama of America Inc.
Alfagomma | S Series | One-Piece AlfaCrimp Fitting | 22.5° Elbow | CAT Flange x Hose Barb

Specifications for Variant SKU: S-2024-CFL2 Kuriyama
Brand:	Alfabiotech Evolution
Series:	S Series
Shape (Orientation):	22.5 Degree
Ends Configuration:	1-1/2in CAT Flange, 1-1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	E3K Series \| E4K Series \| E5K Series \| E5.5K Series \| E6K Series \| E5KST Series \| E6KST Series


Part Number	Hose ID Size			Q Flange		C Cut-Off Factor	T Thickness	D Drop	Flange Dash Size	Weight
Part Number	Dash Size	in	mm	in	mm	mm	mm	mm	Flange Dash Size	lbs/each
S-1212-CFL2	-12	3/4"	19.0mm	1.63"	41.3mm	116mm	14.3mm	21.0mm	-12	1.20 lbs
S-1216-CFL2	-12	3/4"	19.0mm	1.88"	47.6mm	121mm	14.3mm	17.0mm	-16	1.40 lbs
S-1616-CFL2	-16	1"	25.4mm	1.88"	47.6mm	106mm	14.3mm	17.0mm	-16	1.74 lbs
S-1620-CFL2	-16	1"	25.4mm	2.13"	54.0mm	129mm	14.3mm	18.0mm	-20	2.18 lbs
S-2020-CFL2	-20	1-1/4"	31.8mm	2.13"	54.0mm	162mm	14.3mm	25.5mm	-20	2.98 lbs
S-2024-CFL2	-20	1-1/4"	31.8mm	2.50"	63.5mm	170mm	14.3mm	22.0mm	-24	3.41 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
