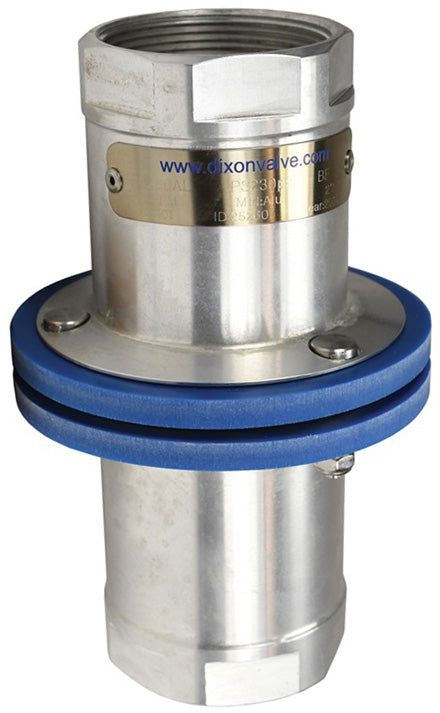

SBC100AL by Dixon Valve | MannTek Safety Break-Away Coupling | Industrial Version | 1" Size | 25 DN | Female NPT x Female NPT | Aluminum

Save $132.06

$1,188.50

$1,188.50 - $1,188.50

$1,188.50

$1,056.44

$1,056.44 - $1,056.44

$1,056.44

Dixon Valve
MannTek Safety Break-Away Coupling | Industrial Version | Female NPT x Female NPT

Coupling is designed to minimize spillage and damage associated with drive away and pull away incidents. Typical applications: loading rack.

Suitable for LP Gas service.

Quantity

Specifications for Variant SKU: SBC100AL Dixon
Brand:	MannTek
Shape (Orientation):	Straight
Ends Configuration:	1in Female NPT, 1in Female NPT, Some Ends Match
Material(s):	Aluminum
Seal Material(s):	Viton/FKM

Features:
Designed to be installed between a fixed point (pipe, pump, manifold) and a hose. Coupling automatically senses an excessive load, closes the valves and disconnects. High flow rate / low pressure drop.
Construction:
FKM (FPM) seal standard.
Specifications:
Working pressure: Stainless Steel: 360 PSI at ambient temperature 70°F (21°C) Aluminum: 230 PSI at ambient temperature 70°F (21°C)
How It Works:
The safety breakaway valve consists of two halves, each with a valve that has an O-ring seal. When the safety breakaway couplings separate, it allows the valves to close. The two valves close rapidly, minimizing exposure to personnel and the environment. Safety breakaway couplings have three external break bolts. In the case of axial tension all of the bolts take up the force corresponding to the break force on the hose with a safety margin. Non-axial forces concentrate the tension forces more strongly on one bolt, so that the safety breakaway coupling reacts in a natural way to the reduction of the hose break forces.


316 Stainless Steel Part Number	Aluminum Part Number	Size	DN Size	Length	Width	Flow
SBC100SS	SBC100AL	1"	25 DN	6" (141 mm)	3.3" (85 mm)	-
SBC200SS	SBC200AL	2"	50 DN	7" (178 mm)	4.5" (114 mm)	200 GPM (757 LPM)
SBC300SS	SBC300AL	3"	80 DN	11" (279 mm)	6.8" (173 mm)	650 GPM (2460 LPM)
SBC400SS	SBC400AL	4"	100 DN	12" (305 mm)	8.3" (210 mm)	800 GPM (3028 LPM)
SBC500SS	SBC500AL	5"	125 DN	14" (356 mm)	10.6" (269 mm)	1100 GPM (4154 LPM)
SBC600SS	SBC600AL	6"	150 DN	16" (406 mm)	12" (305 mm)	1500 GPM (5678 LPM)
