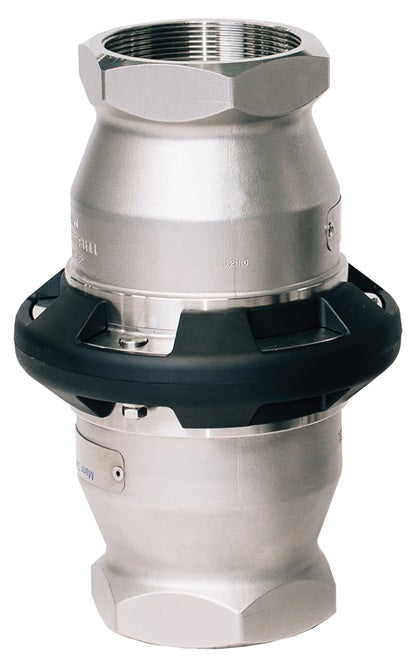

SBC500SS by Dixon Valve | MannTek Safety Break-Away Coupling | Industrial Version | 5" Size | 125 DN | Female NPT x Female NPT | 316 Stainless Steel
SBC500SS by Dixon Valve | MannTek Safety Break-Away Coupling | Industrial Version | 5" Size | 125 DN | Female NPT x Female NPT | 316 Stainless Steel
SBC500SS by Dixon Valve | MannTek Safety Break-Away Coupling | Industrial Version | 5" Size | 125 DN | Female NPT x Female NPT | 316 Stainless Steel

SBC500SS by Dixon Valve | MannTek Safety Break-Away Coupling | Industrial Version | 5" Size | 125 DN | Female NPT x Female NPT | 316 Stainless Steel

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Valve
MannTek Safety Break-Away Coupling | Industrial Version | Female NPT x Female NPT

Coupling is designed to minimize spillage and damage associated with drive away and pull away incidents. Typical applications: loading rack.

Suitable for LP Gas service.
Specifications for Variant SKU: SBC500SS Dixon
Brand: MannTek
Shape (Orientation): Straight
Ends Configuration: 5in Female NPT, 5in Female NPT, Some Ends Match
Material(s): 316 Stainless Steel
Seal Material(s): Viton/FKM
Features:
  • Designed to be installed between a fixed point (pipe, pump, manifold) and a hose.
  • Coupling automatically senses an excessive load, closes the valves and disconnects.
  • High flow rate / low pressure drop.
Construction:
  • FKM (FPM) seal standard.
Specifications:
  • Working pressure:
    • Stainless Steel: 360 PSI at ambient temperature 70°F (21°C)
    • Aluminum: 230 PSI at ambient temperature 70°F (21°C)
How It Works:
  • The safety breakaway valve consists of two halves, each with a valve that has an O-ring seal. When the safety breakaway couplings separate, it allows the valves to close. The two valves close rapidly, minimizing exposure to personnel and the environment.
  • Safety breakaway couplings have three external break bolts. In the case of axial tension all of the bolts take up the force corresponding to the break force on the hose with a safety margin. Non-axial forces concentrate the tension forces more strongly on one bolt, so that the safety breakaway coupling reacts in a natural way to the reduction of the hose break forces.
316 Stainless Steel
Part Number		 Aluminum
Part Number		 Size DN Size Length Width Flow
SBC100SS SBC100AL 1" 25 DN 6" (141 mm) 3.3" (85 mm) -
SBC200SS SBC200AL 2" 50 DN 7" (178 mm) 4.5" (114 mm) 200 GPM (757 LPM)
SBC300SS SBC300AL 3" 80 DN 11" (279 mm) 6.8" (173 mm) 650 GPM (2460 LPM)
SBC400SS SBC400AL 4" 100 DN 12" (305 mm) 8.3" (210 mm) 800 GPM (3028 LPM)
SBC500SS SBC500AL 5" 125 DN 14" (356 mm) 10.6" (269 mm) 1100 GPM (4154 LPM)
SBC600SS SBC600AL 6" 150 DN 16" (406 mm) 12" (305 mm) 1500 GPM (5678 LPM)
