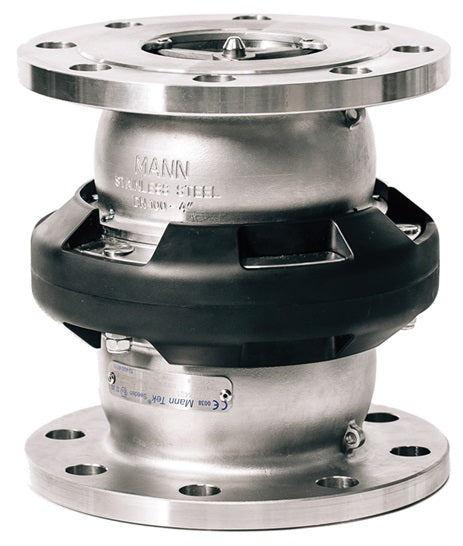

SBC400ALFL by Dixon Valve | MannTek Safety Break-Away Coupling | Industrial Version | 4" Size | 100 DN | 150# Flange x 150# Flange | Aluminum

Save $360.55

$3,244.98

$3,244.98 - $3,244.98

$3,244.98

$2,884.43

$2,884.43 - $2,884.43

$2,884.43

Dixon Valve
MannTek Safety Break-Away Coupling | Industrial Version | 150# Flange x 150# Flange

Coupling is designed to minimize spillage and damage associated with drive away and pull away incidents.

Typical applications: Loading rack.

Quantity

Specifications for Variant SKU: SBC400ALFL Dixon
Brand:	MannTek
Shape (Orientation):	Straight
Ends Configuration:	4in 150# Flange, 4in 150# Flange, Some Ends Match
Material(s):	Aluminum
Seal Material(s):	Viton/FKM

Features:
Designed to be installed between a fixed point (pipe, pump, manifold) and a hose. Coupling automatically senses an excessive load, closes the valves and disconnects. High flow rate / low pressure drop.
Construction:
FKM (FPM) seal standard.
Specifications:
Working pressure: Stainless Steel: 360 PSI at ambient temperature 70°F (21°C) Aluminum: 230 PSI at ambient temperature 70°F (21°C)
How It Works:
The safety breakaway valve consists of two halves, each with a valve that has an O-ring seal. When the safety breakaway couplings separate, it allows the valves to close. The two valves close rapidly, minimizing exposure to personnel and the environment. Safety breakaway couplings have three external break bolts. In the case of axial tension all of the bolts take up the force corresponding to the break force on the hose with a safety margin. Non-axial forces concentrate the tension forces more strongly on one bolt, so that the safety breakaway coupling reacts in a natural way to the reduction of the hose break forces.


316 Stainless Steel Part Number	Aluminum Part Number	Size	DN Size	Length	Width	Flow
SBC100SSFL	-	1"	25 DN	5" (120 mm)	4.3" (108 mm)	-
SBC200SSFL	SBC200ALFL	2"	50 DN	7" (178 mm)	4.5" (114 mm)	200 GPM (757 LPM)
SBC300SSFL	SBC300ALFL	3"	80 DN	8.5" (216 mm)	6.8" (173 mm)	650 GPM (2460 LPM)
SBC400SSFL	SBC400ALFL	4"	100 DN	9" (229 mm)	9.3" (236 mm)	800 GPM (3028 LPM)
SBC500SSFL	SBC500ALFL	5"	125 DN	14" (356 mm)	10.6" (269 mm)	1100 GPM (4154 LPM)
SBC600SSFL	SBC600ALFL	6"	150 DN	15.1" (384 mm)	12.5" (318 mm)	1500 GPM (5678 LPM)
SBC800SSFL	-	8"	200 DN	17.7" (450 mm)	13.5" (343 mm)	3700 GPM (14000 LPM)
