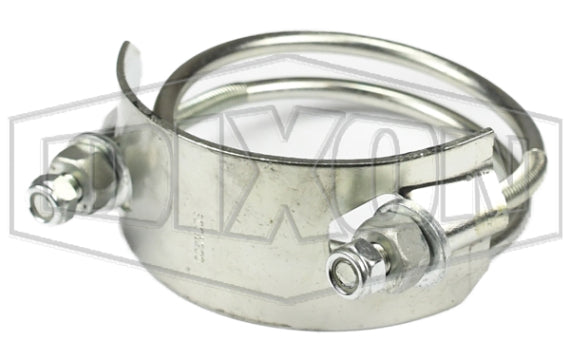

SCCW1200 by Dixon Valve | Spiral Clamp | Counter Clockwise | 12" Size | Hose OD Range: from 11-52/64" to 12-61/64" | Left Hand | Plated Steel

SCCW1200 by Dixon Valve | Spiral Clamp | Counter Clockwise | 12" Size | Hose OD Range: from 11-52/64" to 12-61/64" | Left Hand | Plated Steel

Save $3.56 Save $3.56
$32.05
$32.05 - $32.05
$32.05
$28.49
$28.49 - $28.49
$28.49

Dixon Valve
Spiral Clamps | Counter Clockwise | Left Hand

For use on convoluted cover hose.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: SCCW1200 Dixon
Material(s): Plated Steel
Minimum Clamp I.D.: 11.8125
Maximum Clamp I.D.: 12.953125
Note:
  • More than one clamp may be needed per size; contact the hose manufacturer formore information.
  • Due to fluctuations in the O.D. of hose each individual installation should be checked.
  • To determine which style clamp is needed for your hose look at the end of the hose; if the helix spirals in a clockwise direction away from you (along the hose), a clockwise clamp is needed. If the helix spirals in a counterclockwise direction away from you, a counterclockwise clamp is needed. Examples include, but are not limited to: Kuriyama convoluted hose uses counter clockwise clamps; Pacific Echo and Kana Flex use clockwise clamps; Goodyear uses both counter clockwise and clockwise.
Counter Clockwise | Left Hand
Plated Steel
Part Number		 Size Hose O.D. Range
from to
SCCW150 1-1/2" 1-34/64" 1-52/64"
SCCW200 2" 2-18/64" 2-32/64"
SCCW250 2-1/2" 2-46/64" 3-8/64"
SCCW300 3" 3" 3-32/64"
SCCW400 4" 4" 4-32/64"
SCCW500 5" 5-6/64" 5-32/64"
SCCW600 6" 6-16/64" 7"
SCCW800 8" 8-32/64" 9-16/64"
SCCW1000 10" 10-40/64" 11-16/64"
SCCW1200 12" 11-52/64" 12-61/64"
Clockwise | Right Hand
Plated Steel
Part Number		 Size Hose O.D. Range
from to
SC150 1-1/2" 1-34/64" 1-52/64"
SC200 2" 2-18/64" 2-32/64"
SC250 2-1/2" 2-46/64" 3-8/64"
SC300 3" 3" 3-32/64"
SC400 4" 4" 4-32/64"
SC500 5" 5-6/64" 5-32/64"
SC600 6" 6-16/64" 7"
SC800 8" 8-32/64" 9-16/64"
SC1000 10" 10-40/64" 11-16/64"
SC1200 12" 11-52/64" 12-61/64"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
