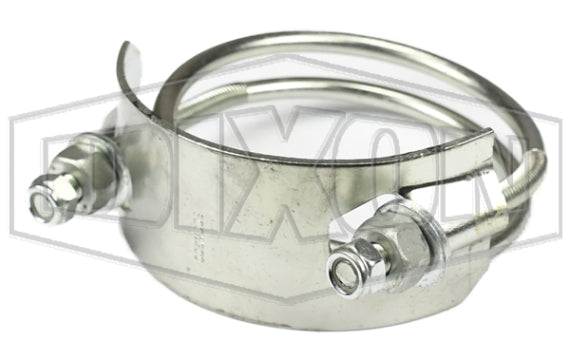

SCCW500 by Dixon Valve | Spiral Clamp | Counter Clockwise | 5" Size | Hose OD Range: from 5-6/64" to 5-32/64" | Left Hand | Plated Steel

SCCW500 by Dixon Valve | Spiral Clamp | Counter Clockwise | 5" Size | Hose OD Range: from 5-6/64" to 5-32/64" | Left Hand | Plated Steel

Save $3.74 Save $3.74
$33.62
$33.62 - $33.62
$33.62
$29.88
$29.88 - $29.88
$29.88

Dixon Valve
Spiral Clamps | Counter Clockwise | Left Hand

For use on convoluted cover hose.
Specifications for Variant SKU: SCCW500 Dixon
Material(s): Plated Steel
Minimum Clamp I.D.: 5.09375
Maximum Clamp I.D.: 5.5
Note:
  • More than one clamp may be needed per size; contact the hose manufacturer formore information.
  • Due to fluctuations in the O.D. of hose each individual installation should be checked.
  • To determine which style clamp is needed for your hose look at the end of the hose; if the helix spirals in a clockwise direction away from you (along the hose), a clockwise clamp is needed. If the helix spirals in a counterclockwise direction away from you, a counterclockwise clamp is needed. Examples include, but are not limited to: Kuriyama convoluted hose uses counter clockwise clamps; Pacific Echo and Kana Flex use clockwise clamps; Goodyear uses both counter clockwise and clockwise.
Counter Clockwise | Left Hand
Plated Steel
Part Number		 Size Hose O.D. Range
from to
SCCW150 1-1/2" 1-34/64" 1-52/64"
SCCW200 2" 2-18/64" 2-32/64"
SCCW250 2-1/2" 2-46/64" 3-8/64"
SCCW300 3" 3" 3-32/64"
SCCW400 4" 4" 4-32/64"
SCCW500 5" 5-6/64" 5-32/64"
SCCW600 6" 6-16/64" 7"
SCCW800 8" 8-32/64" 9-16/64"
SCCW1000 10" 10-40/64" 11-16/64"
SCCW1200 12" 11-52/64" 12-61/64"
Clockwise | Right Hand
Plated Steel
Part Number		 Size Hose O.D. Range
from to
SC150 1-1/2" 1-34/64" 1-52/64"
SC200 2" 2-18/64" 2-32/64"
SC250 2-1/2" 2-46/64" 3-8/64"
SC300 3" 3" 3-32/64"
SC400 4" 4" 4-32/64"
SC500 5" 5-6/64" 5-32/64"
SC600 6" 6-16/64" 7"
SC800 8" 8-32/64" 9-16/64"
SC1000 10" 10-40/64" 11-16/64"
SC1200 12" 11-52/64" 12-61/64"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
