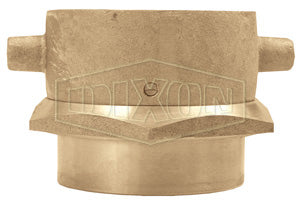

SF25F20T Dixon Cast Brass (Open Snoot) Female Swivel Adapter - Pin Lug - Increaser / Reducer - 2-1/2" Female NST(NH) x 2" Female NPT

SF25F20T Dixon Cast Brass (Open Snoot) Female Swivel Adapter - Pin Lug - Increaser / Reducer - 2-1/2" Female NST(NH) x 2" Female NPT

Save $9.99 Save $9.99
$156.00
$156.00 - $156.00
$156.00
$146.01
$146.01 - $146.01
$146.01

Dixon Fire Fittings
(Open Snoot) Brass Female Swivel Adapters - Female Swivel x Female Rigid - Pin Lug - Cast Brass
Specifications for Variant SKU: SF25F20T Dixon
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Female NST, 2in Female NPT
Material(s): Brass
Features:
  • Double female rigid hexagon to swivel connection, rigid end thread is always NPT, hose thread is on swivel end.
  • Finishes: -P polished, -C polished chrome plated.
Part Number Female Swivel Thread Female Rigid Thread Weight
(Lbs.)
SF150F 1-1/2" Female NST(NH) 1-1/2" Female NPT 1.1100
SF150S 1-1/2" Female NPSH 1-1/2" Female NPT 1.1600
SF25F15T 2-1/2" Female NST(NH) 1-1/2" Female NPT 3.76
SF25F20T 2-1/2" Female NST(NH) 2" Female NPT 2.0500
SF250NYFD 2-1/2" Female NYFD 2-1/2" Female NPT 3.5800
SF250F 2-1/2" Female NST(NH) 2-1/2" Female NPT 2.2500
SF250F-P 2-1/2" Female NST(NH) 2-1/2" Female NPT 2.8450
SF250F-C 2-1/2" Female NST(NH) 2-1/2" Female NPT 2.8550
SF250S 2-1/2" Female NPSH 2-1/2" Female NPT 3.7100
SF25F30T 2-1/2" Female NST(NH) 3" Female NPT 2.7100
SF300F 3" Female NST(NH) 3" Female NPT 4.3300
SF300NYFD 3" Female NYFD 3" Female NPT 4.0000
SF400F 4" Female NST(NH) 4" Female NPT 10.0000
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
