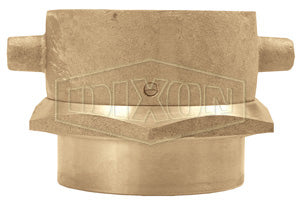

SF25F30T Dixon Cast Brass (Open Snoot) Female Swivel Adapter - Pin Lug - Increaser / Reducer - 2-1/2" Female NST(NH) x 3" Female NPT

SF25F30T Dixon Cast Brass (Open Snoot) Female Swivel Adapter - Pin Lug - Increaser / Reducer - 2-1/2" Female NST(NH) x 3" Female NPT

Save $99.11 Save $99.11
$247.78
$247.78 - $247.78
$247.78
$148.67
$148.67 - $148.67
$148.67

Dixon Fire Fittings
(Open Snoot) Brass Female Swivel Adapters - Female Swivel x Female Rigid - Pin Lug - Cast Brass
Specifications for Variant SKU: SF25F30T Dixon
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Female NST, 3in Female NPT
Material(s): Brass
Features:
  • Double female rigid hexagon to swivel connection, rigid end thread is always NPT, hose thread is on swivel end.
  • Finishes: -P polished, -C polished chrome plated.
Part Number Female Swivel Thread Female Rigid Thread Weight
(Lbs.)
SF150F 1-1/2" Female NST(NH) 1-1/2" Female NPT 1.1100
SF150S 1-1/2" Female NPSH 1-1/2" Female NPT 1.1600
SF25F15T 2-1/2" Female NST(NH) 1-1/2" Female NPT 3.76
SF25F20T 2-1/2" Female NST(NH) 2" Female NPT 2.0500
SF250NYFD 2-1/2" Female NYFD 2-1/2" Female NPT 3.5800
SF250F 2-1/2" Female NST(NH) 2-1/2" Female NPT 2.2500
SF250F-P 2-1/2" Female NST(NH) 2-1/2" Female NPT 2.8450
SF250F-C 2-1/2" Female NST(NH) 2-1/2" Female NPT 2.8550
SF250S 2-1/2" Female NPSH 2-1/2" Female NPT 3.7100
SF25F30T 2-1/2" Female NST(NH) 3" Female NPT 2.7100
SF300F 3" Female NST(NH) 3" Female NPT 4.3300
SF300NYFD 3" Female NYFD 3" Female NPT 4.0000
SF400F 4" Female NST(NH) 4" Female NPT 10.0000
