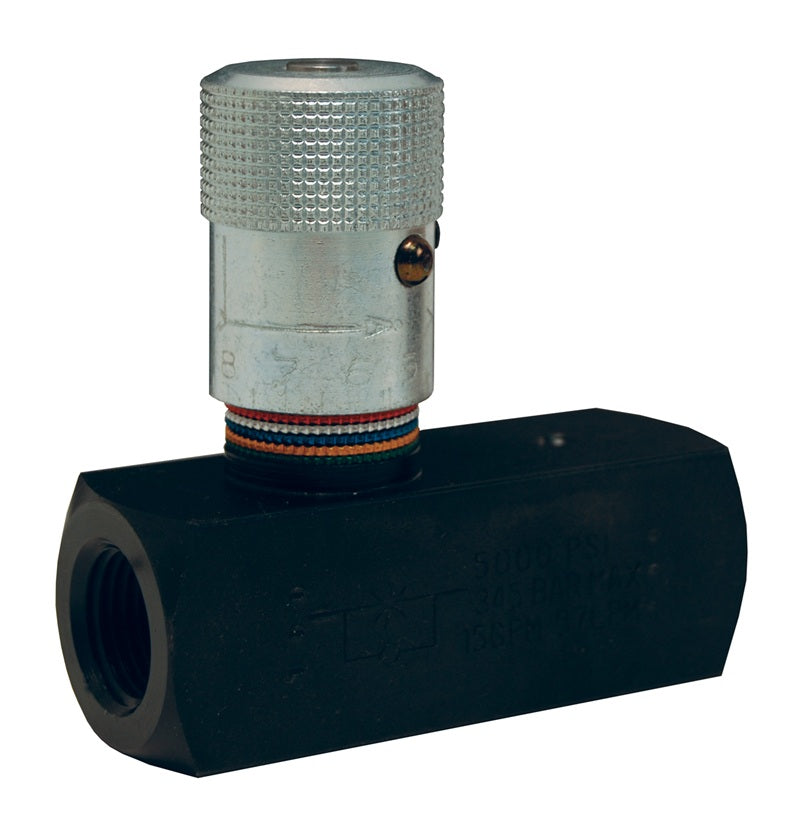

SFC1200 by Dixon Valve | Flow Control Valve | Series F | 3/4" Female NPT x 3/4" Female NPT | Black Oxide Steel

SFC1200 by Dixon Valve | Flow Control Valve | Series F | 3/4" Female NPT x 3/4" Female NPT | Black Oxide Steel

Save $15.23 Save $15.23
$180.35
$180.35 - $180.35
$180.35
$165.12
$165.12 - $165.12
$165.12

Dixon Valve & Coupling
Flow Control Valve | Series F | Steel
Specifications for Variant SKU: SFC1200 Dixon
Shape (Orientation): Straight
Ends Configuration: 3/4in Female NPTF, 3/4in Female NPTF, Some Ends Match
Material(s): Black Steel
Features:
  • Two-step needle provides fine adjustments at low flow with the first three turns of the adjusting knob.
  • The next three turns give full-open needle position and conventional throttling control.
  • When flow is reversed, the heavy-duty poppet/retainer permits full-flow return capacity.
  • Exclusive color-coded reference scale on the adjusting knob greatly simplifies flow setting, resetting, adjusting and return to an original flow.
  • A simple set screw locks the valve on any desired setting.
Materials:
  • Black Oxide Steel.
Specifications:
  • Maximum operating pressure:
    5000 PSI at 70°F (21°C) for 1/8" - 1/2"
    3000 PSI at 70°F (21°C) for 3/4" - 2"
Part Number Female NPTF x Female NPTF
SFC200 1/8"
SFC400 1/4"
SFC600 3/8"
SFC800 1/2"
SFC1200 3/4"
SFC1600 1"
SFC2400 1-1/2"
SFC3200 2"
