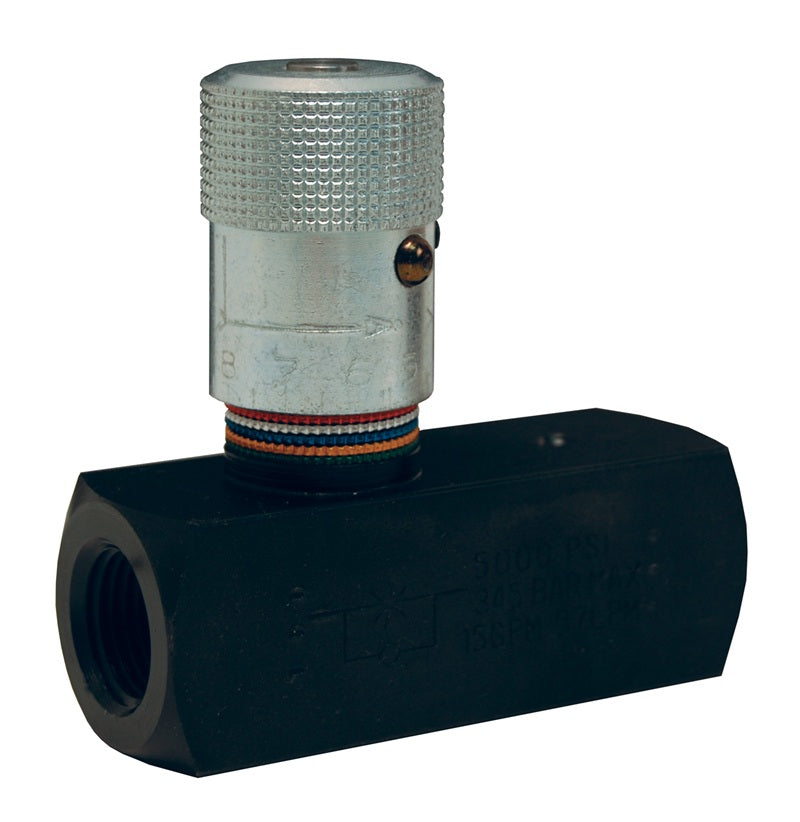

SFC200 by Dixon Valve | Flow Control Valve | Series F | 1/8" Female NPT x 1/8" Female NPT | Black Oxide Steel

SFC200 by Dixon Valve | Flow Control Valve | Series F | 1/8" Female NPT x 1/8" Female NPT | Black Oxide Steel

Save $6.06 Save $6.06
$71.67
$71.67 - $71.67
$71.67
$65.61
$65.61 - $65.61
$65.61

Dixon Valve & Coupling
Flow Control Valve | Series F | Steel
Specifications for Variant SKU: SFC200 Dixon
Shape (Orientation): Straight
Ends Configuration: 1/8in Female NPTF, 1/8in Female NPTF, Some Ends Match
Material(s): Black Steel
Features:
  • Two-step needle provides fine adjustments at low flow with the first three turns of the adjusting knob.
  • The next three turns give full-open needle position and conventional throttling control.
  • When flow is reversed, the heavy-duty poppet/retainer permits full-flow return capacity.
  • Exclusive color-coded reference scale on the adjusting knob greatly simplifies flow setting, resetting, adjusting and return to an original flow.
  • A simple set screw locks the valve on any desired setting.
Materials:
  • Black Oxide Steel.
Specifications:
  • Maximum operating pressure:
    5000 PSI at 70°F (21°C) for 1/8" - 1/2"
    3000 PSI at 70°F (21°C) for 3/4" - 2"
Part Number Female NPTF x Female NPTF
SFC200 1/8"
SFC400 1/4"
SFC600 3/8"
SFC800 1/2"
SFC1200 3/4"
SFC1600 1"
SFC2400 1-1/2"
SFC3200 2"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
