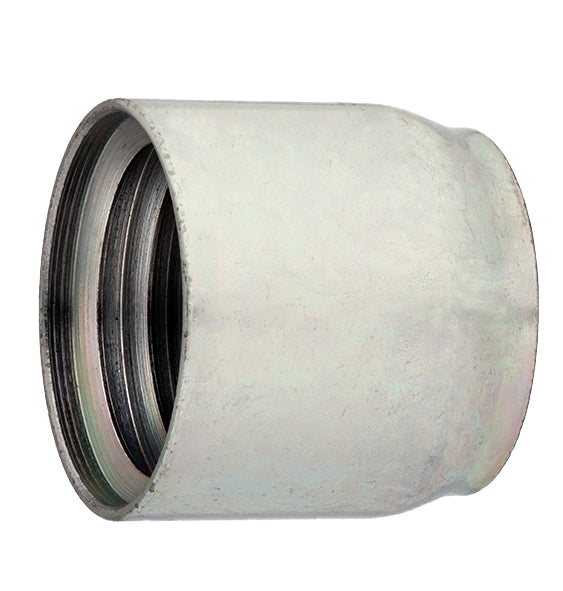

SHF-24 Alfagomma by Kuriyama | Crimp Ferrule for Female Ground Joint (SHGJ Series) | Fits 1-1/2" Size

SHF-24 Alfagomma by Kuriyama | Crimp Ferrule for Female Ground Joint (SHGJ Series) | Fits 1-1/2" Size

Save $9.47 Save $9.47
$34.84
$34.84 - $34.84
$34.84
$25.37
$25.37 - $25.37
$25.37

Kuriyama of America Inc.
Alfagomma | Crimp Ferrule for use with Female Ground Joint

Designed for use with Alfagomma T340, T341, & T343 series hoses.

Designed for use in medium to high-pressure steam applications.
Specifications for Variant SKU: SHF-24 Kuriyama
Brand: Alfagomma
Series: SHF Series
Compatible with the following Series: SHGJ-CR Series
Features:
  • Designed for use in medium to high-pressure steam applications.
  • Designed for use with Alfagomma T340, T341, & T343 series hoses.
  • The metal-to-metal design provides for optimum sealing at high temperatures.
  • Couplings with wing nut female NPS threads connect with male NPS threaded adapters known as spuds. Spuds come with multiple threaded options on the other end, and a copper seal for optimum sealing.
Crimp Ferrule
Part Number		 Size
(in)		 Steam Crimp
(PSI)		 Weight
(lbs) 		Ground Joint
Part Number
AF4-08 1/2" 270 PSI 0.18 SHGJ-CR050
SHF-12 3/4" 270 PSI 0.24 SHGJ-CR075
SHF-16 1" 270 PSI 0.46 SHGJ-CR100
SHF-20 1-1/4" 270 PSI 0.54 SHGJ-CR125
SHF-24 1-1/2" 270 PSI 0.76 SHGJ-CR150
SHF-32 2" 270 PSI 1.16 SHGJ-CR200
