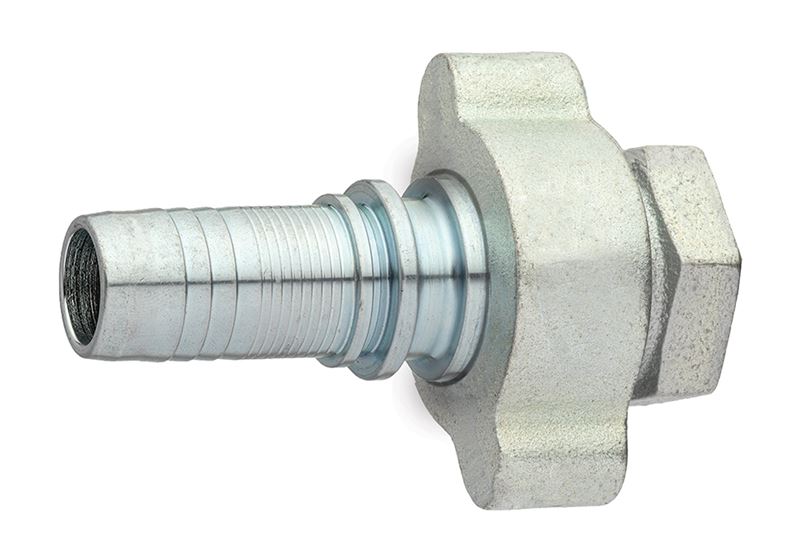

SHGJ-CR050 Alfagomma by Kuriyama | Female Crimp Ground Joint with Wing Nut and Female NPT Spud | for 1/2" Hose ID

SHGJ-CR050 Alfagomma by Kuriyama | Female Crimp Ground Joint with Wing Nut and Female NPT Spud | for 1/2" Hose ID

Save $9.55 Save $9.55
$36.52
$36.52 - $36.52
$36.52
$26.97
$26.97 - $26.97
$26.97

Kuriyama of America Inc.
Alfagomma | Female Crimp Ground Joint with Wing Nut and Female NPT Spud

Designed for use with Alfagomma T340, T341, & T343 series hoses.

For use in medium to high-pressure steam applications.
Specifications for Variant SKU: SHGJ-CR050 Kuriyama
Brand: Alfagomma
Series: SHGJ-CR Series
Internal Diameter: 0.50in - 1/2in
Shape (Orientation): Straight
Compatible with the following Series: AF4 Series
Features:
  • Designed for use in medium to high-pressure steam applications.
  • Designed for use with Alfagomma T340, T341, & T343 series hoses.
  • The metal-to-metal design provides for optimum sealing at high temperatures.
  • Couplings with wing nut female NPS threads connect with male NPS threaded adapters known as spuds. Spuds come with multiple threaded options on the other end, and a copper seal for optimum sealing.
Ground Joint
Part Number		 Size
(in)		 Steam Crimp
(PSI)		 Weight
(lbs) 		Crimp Ferrule
Part Number
SHGJ-CR050 1/2" 270 PSI 0.75 AF4-08
SHGJ-CR075 3/4" 270 PSI 1.86 SHF-12
SHGJ-CR100 1" 270 PSI 1.81 SHF-16
SHGJ-CR125 1-1/4" 270 PSI 3.73 SHF-20
SHGJ-CR150 1-1/2" 270 PSI 3.68 SHF-24
SHGJ-CR200 2" 270 PSI 5.69 SHF-32
