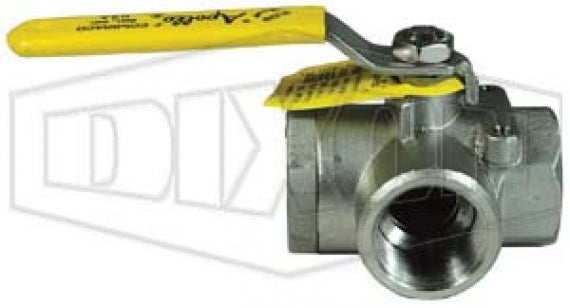

SSBV100TW by Dixon Valve | 3-Way Diverting Ball Valve | L Flow | Standard Port | 1" Female NPT x 1" Female NPT x 1" Female NPT | Stainless Steel

SSBV100TW by Dixon Valve | 3-Way Diverting Ball Valve | L Flow | Standard Port | 1" Female NPT x 1" Female NPT x 1" Female NPT | Stainless Steel

Save $31.47 Save $31.47
$472.74
$472.74 - $472.74
$472.74
$441.27
$441.27 - $441.27
$441.27

Dixon Valve & Coupling
3-Way Diverting Ball Valve | L Flow | Stainless Steel
Specifications for Variant SKU: SSBV100TW Dixon
Shape (Orientation): Tee
Ends Configuration: 1in Female NPT, 1in Female NPT, 1in Female NPT, Some Ends Match
Material(s): Stainless Steel
Features:
  • Blow-out proof stem.
  • Adjustable stem packing.
Materials:
  • Body: Stainless Steel.
  • Stainless steel ball.
  • RPTFE seats and stuffing box ring.
  • Stainless steel handle and nut with vinyl sleeve.
Specifications:
  • Rated to 800 PSI CWP.
Approvals:
  • Meets NACE MR0175
Part Number Female NPT x Female NPT x Female NPT Port
SSBV50TW 1/2" Full
BBV75DTW 3/4" Standard
SSBV100TW 1" Standard
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
