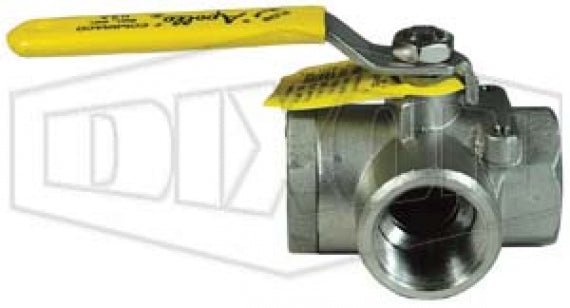

SSBV75TW by Dixon Valve | 3-Way Diverting Ball Valve | L Flow | Standard Port | 3/4" Female NPT x 3/4" Female NPT x 3/4" Female NPT | Stainless Steel

Save $236.65

$591.62

$591.62 - $591.62

$591.62

$354.97

$354.97 - $354.97

$354.97

Dixon Valve & Coupling
3-Way Diverting Ball Valve | L Flow | Stainless Steel

Specifications for Variant SKU: SSBV75TW Dixon
Shape (Orientation):	Tee
Ends Configuration:	3/4in Female NPT, 3/4in Female NPT, 3/4in Female NPT, Some Ends Match
Material(s):	Stainless Steel

Features:
Blow-out proof stem. Adjustable stem packing.
Materials:
Body: Stainless Steel. Stainless steel ball. RPTFE seats and stuffing box ring. Stainless steel handle and nut with vinyl sleeve.
Specifications:
Rated to 800 PSI CWP.
Approvals:
Meets NACE MR0175


Part Number	Female NPT x Female NPT x Female NPT	Port
SSBV50TW	1/2"	Full
BBV75DTW	3/4"	Standard
SSBV100TW	1"	Standard

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
