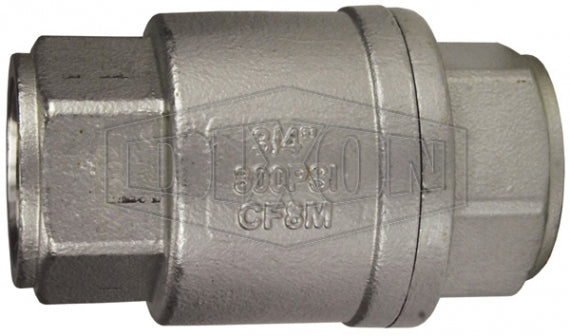

SSCVIL075 by Dixon Valve | Check Valve | 800 PSI | 3/4" Female NPT x 3/4" Female NPT | 316 Stainless Steel

SSCVIL075 by Dixon Valve | Check Valve | 800 PSI | 3/4" Female NPT x 3/4" Female NPT | 316 Stainless Steel

Save $14.53 Save $14.53
$130.78
$130.78 - $130.78
$130.78
$116.25
$116.25 - $116.25
$116.25

Dixon Valve & Coupling
Check Valve | 800 PSI
Specifications for Variant SKU: SSCVIL075 Dixon
Shape (Orientation): Straight
Ends Configuration: 3/4in Female NPT, 3/4in Female NPT, Some Ends Match
Material(s): 316 Stainless Steel
Features:
  • Soft PTFE seat is spring loaded for fast seating action.
  • Flow profile designed to minimize head loss.
  • Corrosion resistance, excellent for use on chemicals.
  • Dual guided stem and disc.
Specifications:
  • Temperature range: 10°F to 450°F (-12°C to 232°C)
  • Pressure rating: 800 PSI WOG; 125 PSI saturated steam
  • Cracking pressure: .5 PSI
Part Number Female NPT x Female NPT
SSCVIL025 1/4" x 1/4"
SSCVIL038 3/8" x 3/8"
SSCVIL050 1/2" x 1/2"
SSCVIL075 3/4" x 3/4"
SSCVIL100 1" x 1"
SSCVIL125 1-1/4" x 1-1/4"
SSCVIL150 1-1/2" x 1-1/2"
SSCVIL200 2" x 2"
