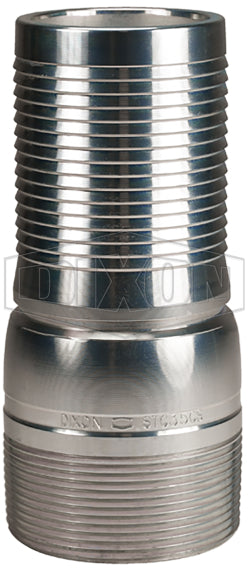

STC20CS by Dixon Valve | King Crimp® | Combination Nipple | 1-1/2" Male NPT | Schedule 80 Plated Carbon Steel

STC20CS by Dixon Valve | King Crimp® | Combination Nipple | 1-1/2" Male NPT | Schedule 80 Plated Carbon Steel

Save $1.88 Save $1.88
$16.95
$16.95 - $16.95
$16.95
$15.07
$15.07 - $15.07
$15.07

Dixon Valve & Coupling
King Crimp® Style | Combination Nipple | Male NPT Threaded End
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: STC20CS Dixon
Brand: King Crimp®
Shape (Orientation): Straight
Ends Configuration: 1-1/2in Male NPT, 1-1/2in Hose Barb
Material(s): Carbon Steel
About:
  • There are two grooves on the crimp style King Combination nipples. The second groove is the roll stamp groove which has the part number and 'call Dixon' stamped on it. This groove is a smooth concentric groove so that the stamp can be legible.
Safety Notes:
  • For use with King Crimp style sleeves and ferrules.
  • Only use the crimp style shanks with the crimp style sleeves and ferrules.
  • Due to differences in dimensions and tolerances for safety reasons, do not interchange other manufacturer's products with Dixon products.
Schedule 80
Plated Carbon Steel
Part Number		 316 Stainless Steel
Part Number		 Size
STC10CS RST10CS 1" Male NPT
STC15CS RST15CS 1-1/4" Male NPT
STC20CS RST20CS 1-1/2" Male NPT
STC25CS RST25CS 2" Male NPT
STC30CS RST30CS 2-1/2" Male NPT
STC35CS RST35CS 3" Male NPT
STC40CS RST40CS 4" Male NPT
STC60CS RST60CS 6" Male NPT
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
