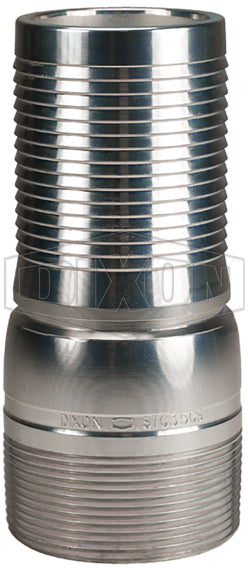

STC30CS by Dixon Valve | King Crimp® | Combination Nipple | 2-1/2" Male NPT | Schedule 80 Plated Carbon Steel

STC30CS by Dixon Valve | King Crimp® | Combination Nipple | 2-1/2" Male NPT | Schedule 80 Plated Carbon Steel

Save $4.26 Save $4.26
$50.61
$50.61 - $50.61
$50.61
$46.35
$46.35 - $46.35
$46.35

Dixon Valve & Coupling
King Crimp® Style | Combination Nipple | Male NPT Threaded End
Specifications for Variant SKU: STC30CS Dixon
Brand: King Crimp®
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Male NPT, 2-1/2in Hose Barb
Material(s): Carbon Steel
About:
  • There are two grooves on the crimp style King Combination nipples. The second groove is the roll stamp groove which has the part number and 'call Dixon' stamped on it. This groove is a smooth concentric groove so that the stamp can be legible.
Safety Notes:
  • For use with King Crimp style sleeves and ferrules.
  • Only use the crimp style shanks with the crimp style sleeves and ferrules.
  • Due to differences in dimensions and tolerances for safety reasons, do not interchange other manufacturer's products with Dixon products.
Schedule 80
Plated Carbon Steel
Part Number		 316 Stainless Steel
Part Number		 Size
STC10CS RST10CS 1" Male NPT
STC15CS RST15CS 1-1/4" Male NPT
STC20CS RST20CS 1-1/2" Male NPT
STC25CS RST25CS 2" Male NPT
STC30CS RST30CS 2-1/2" Male NPT
STC35CS RST35CS 3" Male NPT
STC40CS RST40CS 4" Male NPT
STC60CS RST60CS 6" Male NPT
