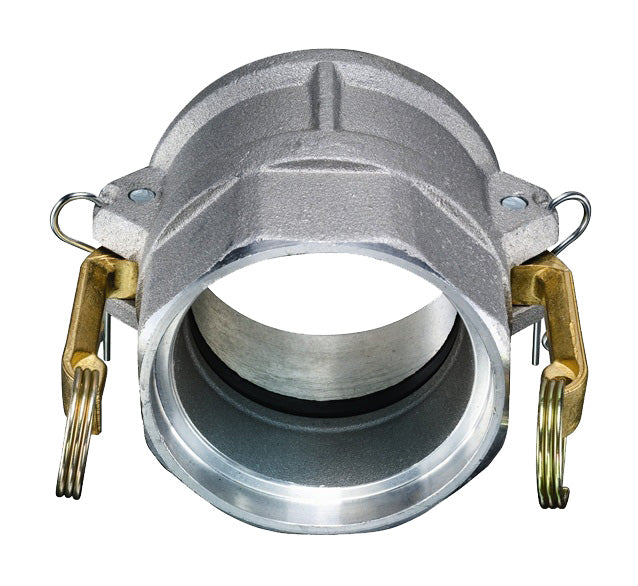

SW-ALD200 by Kuriyama | SW-ALD Series | Part D | Cam & Groove Adapter | 2" Coupler x 2" Socket Weld End | Aluminum

SW-ALD200 by Kuriyama | SW-ALD Series | Part D | Cam & Groove Adapter | 2" Coupler x 2" Socket Weld End | Aluminum

Save $9.12 Save $9.12
$26.44
$26.44 - $26.44
$26.44
$17.32
$17.32 - $17.32
$17.32

Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | SW-ALD Series | Part D | Coupler x Socket Weld End | Aluminum

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: SW-ALD200 Kuriyama
Series: SW-ALD Series
Shape (Orientation): Straight
Cam Type: Type D
Ends Configuration: 2in Female Cam & Groove, 2in Weld End
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Aluminum alloy specially designed for high tensile strength and impact resistance.
  • Supplied with forged brass handles which results in less wear on connecting parts.
  • Socket weld items are designed for use with schedule 40 pipe.

What are the Materials?

  • ASTM aluminum alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
  • Zinc plated carbon steel handle pins, pull rings and safety clips.
  • Buna-N gasket included.
Part Number Size
(in)		 PSI Rating
at 70°F		 ASTM Specification Weight
Each
(lbs)
SW-ALD150 1-1/2" 250 PSI B26 Grade 713 0.81 lbs
SW-ALD200 2" 250 PSI B26 Grade 713 0.99 lbs
SW-ALD250 2-1/2" 250 PSI B26 Grade 713 1.27 lbs
SW-ALD300 3" 250 PSI B26 Grade 713 1.69 lbs
SW-ALD400 4" 150 PSI B26 Grade 713 2.91 lbs
SW-ALD500 5" 150 PSI B26 Grade 713 4.56 lbs
SW-ALD600 6" 150 PSI B26 Grade 713 5.28 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
