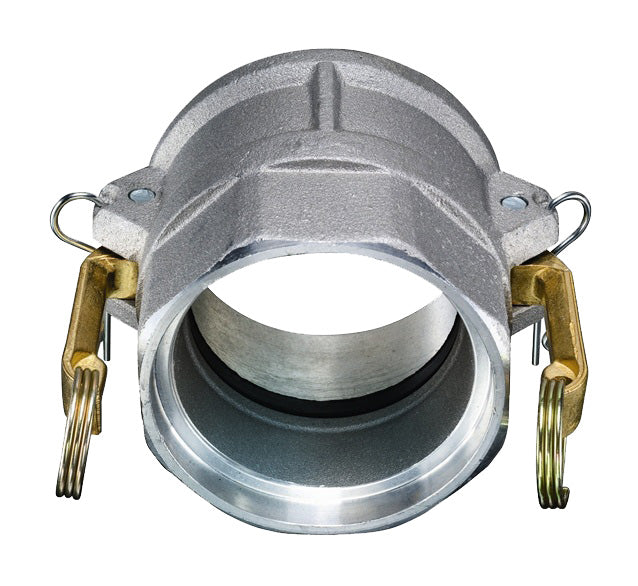

SW-ALD400 by Kuriyama | SW-ALD Series | Part D | Cam & Groove Adapter | 4" Coupler x 4" Socket Weld End | Aluminum

Save $15.64

$63.21

$63.21 - $63.21

$63.21

$47.57

$47.57 - $47.57

$47.57

Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | SW-ALD Series | Part D | Coupler x Socket Weld End | Aluminum

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.

Specifications for Variant SKU: SW-ALD400 Kuriyama
Series:	SW-ALD Series
Shape (Orientation):	Straight
Cam Type:	Type D
Ends Configuration:	4in Female Cam & Groove, 4in Weld End
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile Rubber

What are the Applications?

Kuriyama Camlock Couplings are intended for use in many industrial applications.
Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

High quality design made to withstand rigorous applications found in industrial markets.
Aluminum alloy specially designed for high tensile strength and impact resistance.
Supplied with forged brass handles which results in less wear on connecting parts.
Socket weld items are designed for use with schedule 40 pipe.

What are the Materials?

ASTM aluminum alloy.
Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
Zinc plated carbon steel handle pins, pull rings and safety clips.
Buna-N gasket included.

Part Number	Size (in)	PSI Rating at 70°F	ASTM Specification	Weight Each (lbs)
SW-ALD150	1-1/2"	250 PSI	B26 Grade 713	0.81 lbs
SW-ALD200	2"	250 PSI	B26 Grade 713	0.99 lbs
SW-ALD250	2-1/2"	250 PSI	B26 Grade 713	1.27 lbs
SW-ALD300	3"	250 PSI	B26 Grade 713	1.69 lbs
SW-ALD400	4"	150 PSI	B26 Grade 713	2.91 lbs
SW-ALD500	5"	150 PSI	B26 Grade 713	4.56 lbs
SW-ALD600	6"	150 PSI	B26 Grade 713	5.28 lbs
