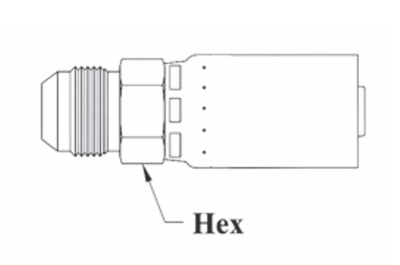

T08-6X6 Couplamatic T Series Coupling - JIC 37° - Male Solid - 3/8" Hose ID - 9/16x18 Thread Size

T08-6X6 by Couplamatic | T Series Coupling | 3/8" Hose ID x 9/16x18 Thread Size JIC 37° Male Solid | Straight | Trivalent Zinc Plating | Pack of 10

Save $4.83 Save $4.83
$43.47
$43.47 - $43.47
$43.47
$38.64
$38.64 - $38.64
$38.64

Couplamatic Systems Inc.
T Series - JIC 37° - Male Solid

Package Quantity: 10 EA

Specifications for Variant SKU: T08-6X6 Couplamatic | 10 |
Series: T Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Male JIC, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: TR14 Series  |   RD7 Series  |   RD7NC Series  |   RD7TL Series  |   RD7TLNC Series  |   H7 Series  |   H7NC Series  |   H7TL Series  |   H7TLNC Series
Description:
  • The T Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp.
  • Trivalent Zinc Plating.
Part Number Hose ID Thread Size Tube OD Hex Size Cross Reference Part Numbers
Weatherhead E
T08-4X4 1/4" 7/16x20 1/4" 1/2" 04E-504
T08-4X6 1/4" 9/16x18 3/8" 5/8" 04E-506
T08-5X5 5/16" 1/2x20 5/16" 9/16" 05E-505
T08-6X6 3/8" 9/16x18 3/8" 5/8" 06E-506
T08-6X8 3/8" 3/4x16 1/2" 13/16" 06E-508
T08-8X8 1/2" 3/4x16 1/2" 13/16" 08E-508
T08-8X10 1/2" 7/8x14 5/8" 15/16" 08E-510
T08-12X12 3/4" 1-1/16x12 3/4" 1-1/8" 12E-512
T08-16X16 1" 1-5/16x12 1" 1-3/8" 16E-516

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
