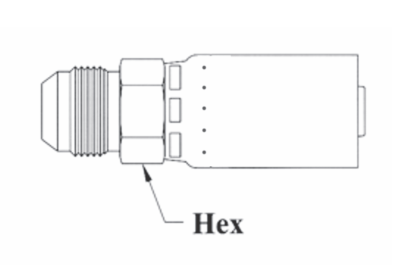

T08-8X10 Couplamatic T Series Coupling - JIC 37° - Male Solid - 1/2" Hose ID - 7/8x14 Thread Size

T08-8X10 by Couplamatic | T Series Coupling | 1/2" Hose ID x 7/8x14 Thread Size JIC 37° Male Solid | Straight | Trivalent Zinc Plating | Pack of 10

Save $7.05

$63.42

$63.42 - $63.42

$63.42

$56.37

$56.37 - $56.37

$56.37

Couplamatic Systems Inc.
T Series - JIC 37° - Male Solid

Package Quantity: 10 EA

Quantity

Specifications for Variant SKU: T08-8X10 Couplamatic \| 10 \|
Series:	T Series
Shape (Orientation):	Straight
Ends Configuration:	5/8in Male JIC, 1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	TR14 Series \| RD7 Series \| RD7NC Series \| RD7TL Series \| RD7TLNC Series \| H7 Series \| H7NC Series \| H7TL Series \| H7TLNC Series

Description:
The T Series Couplings are compatible with virtually all Crimp Machines and can be crimped with a standard straight crimp or bubble crimp. Trivalent Zinc Plating.

Part Number	Hose ID	Thread Size	Tube OD	Hex Size	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	Hex Size	Weatherhead E
T08-4X4	1/4"	7/16x20	1/4"	1/2"	04E-504
T08-4X6	1/4"	9/16x18	3/8"	5/8"	04E-506
T08-5X5	5/16"	1/2x20	5/16"	9/16"	05E-505
T08-6X6	3/8"	9/16x18	3/8"	5/8"	06E-506
T08-6X8	3/8"	3/4x16	1/2"	13/16"	06E-508
T08-8X8	1/2"	3/4x16	1/2"	13/16"	08E-508
T08-8X10	1/2"	7/8x14	5/8"	15/16"	08E-510
T08-12X12	3/4"	1-1/16x12	3/4"	1-1/8"	12E-512
T08-16X16	1"	1-5/16x12	1"	1-3/8"	16E-516

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
