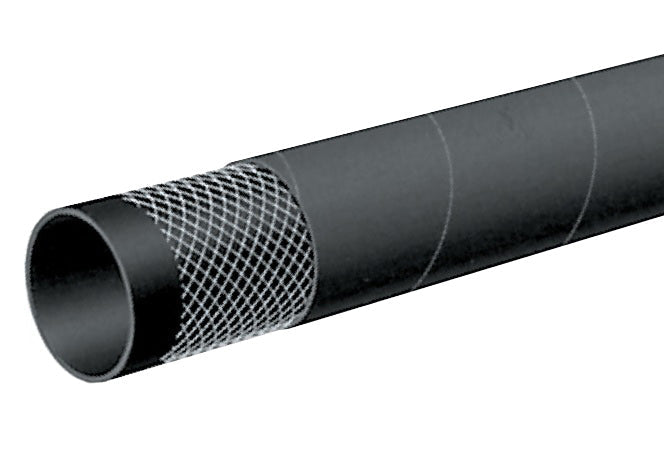

T253AA400X100 Alfagomma by Kuriyama | T253AA Series | Layflat Water Discharge Hose | 4" ID | 4.33" OD | 150 PSI | EPDM | Black | 100ft

T253AA400X100 Alfagomma by Kuriyama | T253AA Series | Layflat Water Discharge Hose | 4" ID | 4.33" OD | 150 PSI | EPDM | Black | 100ft Length

Save $567.80 Save $567.80
$1,514.00
$1,514.00 - $1,514.00
$1,514.00
$946.20
$946.20 - $946.20
$946.20

Kuriyama of America Inc.
Alfagomma | T253AA Series | 150 PSI EPDM Layflat Water Discharge Hose

High-pressure, 150 PSI lay-flat hose designed for general industrial use, construction, and irrigation applications.

Package Quantity: 100 Foot

Specifications for Variant SKU: T253AA400X100 Kuriyama | 100 |
Brand: Alfagomma
Series: T253AA Series
Hose Color(s): Black
Internal Diameter: 4in
Outer Diameter: 4.33in
Tubing Construction: EPDM
Cover Construction: EPDM

SPECIFICATIONS

Application: High pressure, 150 PSI lay flat type hose for general industrial construction and irrigation. SAE Rating: -
Other Ratings: - Tube: Black EPDM.
Reinforcement: High tensile textile cords. Cover: Black EPDM - abrasion and ozoneresistant.
Service Temperature Range: -22°F (-30°C) to +176°F (+80°C) Coupling Suggestions: Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps.
Branding: Alfagomma - Italy - T253 10 Bar (150 PSI) EPDM WATER DISCHARGE (in green letters)
Part Number
50ft		 Part Number
100ft		 ID OD Max Rec.
Working Pressure		 Weight
(in) (mm) (in) (mm) PSI lbs/ft
- T253AA150X100 1-1/2" 38mm 1.81" 46mm 150 PSI 0.37 lbs/ft
- T253AA200X100 2" 51mm 2.32" 59mm 150 PSI 0.50 lbs/ft
- T253AA250X100 2-1/2" 63mm 2.80" 71mm 150 PSI 0.60 lbs/ft
- T253AA300X100 3" 76mm 3.31" 84mm 150 PSI 0.86 lbs/ft
- T253AA400X100 4" 102mm 4.33" 110mm 150 PSI 1.19 lbs/ft
T253AA600X50 T253AA600X100 6" 152mm 6.38" 162mm 150 PSI 2.00 lbs/ft
T253AA662X50* T253AA662X100* 6-5/8" 168mm 7.01" 178mm 150 PSI 2.17 lbs/ft
T253AA800X50 T253AA800X100 8" 203mm 8.46" 215mm 150 PSI 2.82 lbs/ft
T253AA1000X50 T253AA1000X100 10" 254mm 10.63" 270mm 150 PSI 5.11 lbs/ft
T253AA1200X50 - 12" 305mm 12.56" 319mm 150 PSI 5.93 lbs/ft

* 6-5/8" referred to as Elephant Trunk Hose - Ideal for "Irrigation Boots."

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
