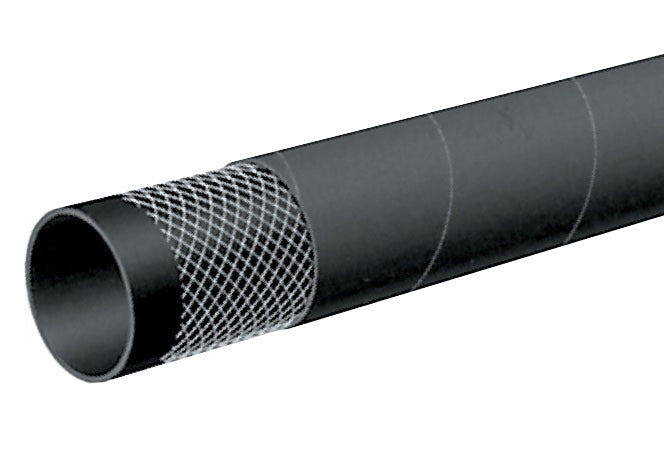

T253AA662X50 Alfagomma by Kuriyama | T253AA Series | Layflat Water Discharge Hose (Elephant Trunk Hose) | 6-5/8" ID | 7.01" OD | 150 PSI | EPDM | Black | 50ft Length

Save $578.92

$1,584.97

$1,584.97 - $1,584.97

$1,584.97

$1,006.05

$1,006.05 - $1,006.05

$1,006.05

Kuriyama of America Inc.
Alfagomma | T253AA Series | 150 PSI EPDM Layflat Water Discharge Hose

High-pressure, 150 PSI lay-flat hose designed for general industrial use, construction, and irrigation applications.

Package Quantity: 50 Foot

Specifications for Variant SKU: T253AA662X50 Kuriyama \| 50 \|
Brand:	Alfagomma
Series:	T253AA Series
Hose Color(s):	Black
Internal Diameter:	6.625in - 6-5/8in
Outer Diameter:	7.01in
Tubing Construction:	EPDM
Cover Construction:	EPDM

SPECIFICATIONS

Application:	High pressure, 150 PSI lay flat type hose for general industrial construction and irrigation.	SAE Rating:	-
Other Ratings:	-	Tube:	Black EPDM.
Reinforcement:	High tensile textile cords.	Cover:	Black EPDM - abrasion and ozoneresistant.
Service Temperature Range:	-22°F (-30°C) to +176°F (+80°C)	Coupling Suggestions:	Quick-Acting, pin lug, short shank couplings or combination nipples attached with single bolt, double bolt, wire or band type clamps.
Branding:	Alfagomma - Italy - T253 10 Bar (150 PSI) EPDM WATER DISCHARGE (in green letters)

Part Number 50ft	Part Number 100ft	ID		OD		Max Rec. Working Pressure	Weight
Part Number 50ft	Part Number 100ft	(in)	(mm)	(in)	(mm)	PSI	lbs/ft
-	T253AA150X100	1-1/2"	38mm	1.81"	46mm	150 PSI	0.37 lbs/ft
-	T253AA200X100	2"	51mm	2.32"	59mm	150 PSI	0.50 lbs/ft
-	T253AA250X100	2-1/2"	63mm	2.80"	71mm	150 PSI	0.60 lbs/ft
-	T253AA300X100	3"	76mm	3.31"	84mm	150 PSI	0.86 lbs/ft
-	T253AA400X100	4"	102mm	4.33"	110mm	150 PSI	1.19 lbs/ft
T253AA600X50	T253AA600X100	6"	152mm	6.38"	162mm	150 PSI	2.00 lbs/ft
T253AA662X50*	T253AA662X100*	6-5/8"	168mm	7.01"	178mm	150 PSI	2.17 lbs/ft
T253AA800X50	T253AA800X100	8"	203mm	8.46"	215mm	150 PSI	2.82 lbs/ft
T253AA1000X50	T253AA1000X100	10"	254mm	10.63"	270mm	150 PSI	5.11 lbs/ft
T253AA1200X50	-	12"	305mm	12.56"	319mm	150 PSI	5.93 lbs/ft

* 6-5/8" referred to as Elephant Trunk Hose - Ideal for "Irrigation Boots."

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
