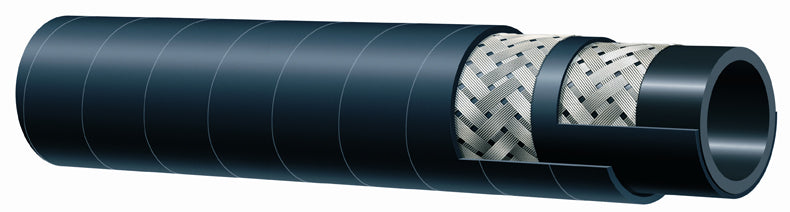

T341AA050X50 Alfagomma by Kuriyama | T341AA Series | Saturated & Superheated Steam Hose | 1/2" ID | 0.91" OD | 270 PSI | Black | 50ft Length

T341AA050X50 Alfagomma by Kuriyama | T341AA Series | Saturated & Superheated Steam Hose | 1/2" ID | 0.91" OD | 270 PSI | Black | 50ft Length

Save $76.57 Save $76.57
$326.52
$326.52 - $326.52
$326.52
$249.95
$249.95 - $249.95
$249.95

Kuriyama of America Inc.
Alfagomma | T341AH / T341AA Series | 270 PSI Chlorobutyl Braided Steam Hose

For the transfer of saturated and superheated steam up to 270 PSI and max 410°F (+210°C) in shipyards, chemical plants and industrial applications.

Package Quantity: 50 Foot

Specifications for Variant SKU: T341AA050X50 Kuriyama | 50 |
Brand: Alfagomma
Series: T341AA Series
Hose Color(s): Black
Internal Diameter: 0.50in - 1/2in
Outer Diameter: 0.91in
Tubing Construction: Chlorobutyl
Cover Construction: EPDM
Special Properties: Pin Pricked Hose Cover

SPECIFICATIONS

Application: The transfer of saturated and superheated steam up to 270 PSI and max 410°F (+210°C) in shipyards, chemical plants and industrial applications.
Proper draining of steam hose after each use will increase service life.
T341AA/AH 1 1/4", 1 1/2" & 2" not suitable for "Ship to Shore" service.
Not recommended for washdown applications where detergent or oils are present.
Not for steam cleaner use.
Other Ratings: - Tube: Black extruded CIIR - heat-resistant.
Reinforcement: High tensile steel wire braids (1/2" ID - 1 wire braid, 3/4" and higher ID's - 2 wire braids). Cover: Red or black EPDM - heat-resistant. Wrapped cover fabric impression. Pin-pricked cover to allow venting
Service Temperature Range: Saturated and Superheated Steam. Constant Operation: -40°F (-40 °C) to +410°F (+210°C) Intermittent to +450°F (+232°C) Coupling Suggestions: Steel or malleable iron male insert NPT or female ground joint or washer type with spuds attached with 2 or 4 bolt interlocking clamps.
Universal quick-acting couplings should not be used with steam hose.
Branding: ALFAGOMMA - ITALY T341 18 BAR (270 PSI) STEAM - DRAIN AFTER USE - QTR/YEAR (embossed)
Red Cover
Part Number
50ft		 Part Number
100ft		 ID OD Max Rec.
Working
Pressure		 Min. Bend
Radius
at 68°F		 Weight
(in) (mm) (in) (mm) PSI (in) lbs/ft
T341AH050X50 T341AH050X100 1/2" 13mm 0.91" 23mm 270 PSI 5" 0.29 lbs/ft
T341AH075X50 T341AH075X100 3/4" 19mm 1.22" 31mm 270 PSI 7-1/2" 0.53 lbs/ft
T341AH100X50 T341AH100X100 1" 25mm 1.50" 38mm 270 PSI 10" 0.62 lbs/ft
T341AH125X50 T341AH125X100 1-1/4" 32mm 1.81" 46mm 270 PSI 12-1/2" 0.89 lbs/ft
T341AH150X50 T341AH150X100 1-1/2" 38mm 2.05" 52mm 270 PSI 15" 0.97 lbs/ft
T341AH200X50 T341AH200X100 2" 51mm 2.64" 67mm 270 PSI 20" 1.44 lbs/ft
Black Cover
Part Number
50ft		 Part Number
100ft		 ID OD Max Rec.
Working
Pressure		 Min. Bend
Radius
at 68°F		 Weight
(in) (mm) (in) (mm) PSI (in) lbs/ft
T341AA050X50 T341AA050X100 1/2" 13mm 0.91" 23mm 270 PSI 5" 0.29 lbs/ft
T341AA075X50 T341AA075X100 3/4" 19mm 1.22" 31mm 270 PSI 7-1/2" 0.53 lbs/ft
T341AA100X50 T341AA100X100 1" 25mm 1.50" 38mm 270 PSI 10" 0.62 lbs/ft
T341AA125X50 T341AA125X100 1-1/4" 32mm 1.81" 46mm 270 PSI 12-1/2" 0.89 lbs/ft
T341AA150X50 T341AA150X100 1-1/2" 38mm 2.05" 52mm 270 PSI 15" 0.97 lbs/ft
T341AA200X50 T341AA200X100 2" 51mm 2.64" 67mm 270 PSI 20" 1.44 lbs/ft
