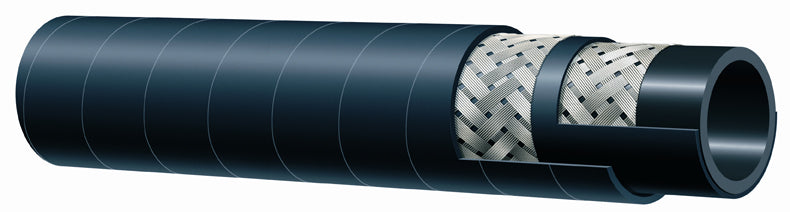

T341AA150X100 Alfagomma by Kuriyama | T341AA Series | Saturated & Superheated Steam Hose | 1-1/2" ID | 2.05" OD | 270 PSI | Black | 100ft Length

Save $373.65

$1,326.12

$1,326.12 - $1,326.12

$1,326.12

$952.47

$952.47 - $952.47

$952.47

Kuriyama of America Inc.
Alfagomma | T341AH / T341AA Series | 270 PSI Chlorobutyl Braided Steam Hose

For the transfer of saturated and superheated steam up to 270 PSI and max 410°F (+210°C) in shipyards, chemical plants and industrial applications.

Package Quantity: 100 Foot

Specifications for Variant SKU: T341AA150X100 Kuriyama \| 100 \|
Brand:	Alfagomma
Series:	T341AA Series
Hose Color(s):	Black
Internal Diameter:	1.50in - 1-1/2in
Outer Diameter:	2.05in
Tubing Construction:	Chlorobutyl
Cover Construction:	EPDM
Special Properties:	Pin Pricked Hose Cover

Application:	The transfer of saturated and superheated steam up to 270 PSI and max 410°F (+210°C) in shipyards, chemical plants and industrial applications. Proper draining of steam hose after each use will increase service life. T341AA/AH 1 1/4", 1 1/2" & 2" not suitable for "Ship to Shore" service. Not recommended for washdown applications where detergent or oils are present. Not for steam cleaner use.
Other Ratings:	-	Tube:	Black extruded CIIR - heat-resistant.
Reinforcement:	High tensile steel wire braids (1/2" ID - 1 wire braid, 3/4" and higher ID's - 2 wire braids).	Cover:	Red or black EPDM - heat-resistant. Wrapped cover fabric impression. Pin-pricked cover to allow venting
Service Temperature Range:	Saturated and Superheated Steam. Constant Operation: -40°F (-40 °C) to +410°F (+210°C) Intermittent to +450°F (+232°C)	Coupling Suggestions:	Steel or malleable iron male insert NPT or female ground joint or washer type with spuds attached with 2 or 4 bolt interlocking clamps. Universal quick-acting couplings should not be used with steam hose.
Branding:	ALFAGOMMA - ITALY T341 18 BAR (270 PSI) STEAM - DRAIN AFTER USE - QTR/YEAR (embossed)
