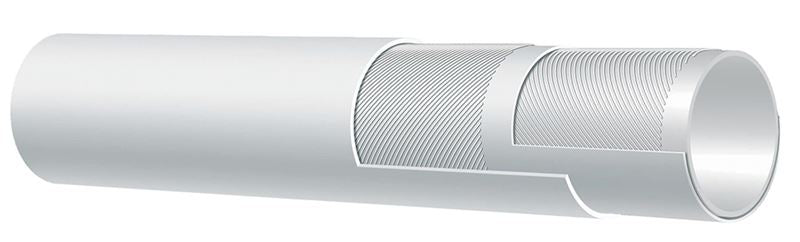

T350LL050X200 Alfagomma by Kuriyama | T350LL Series | Premium Paper Mill/Creamery Wash Down Hot Water Hose | No Nozzle | 1/2" ID | 0.91" OD | 225 PSI | White | 200ft Length

Save $206.67

$883.82

$883.82 - $883.82

$883.82

$677.15

$677.15 - $677.15

$677.15

Kuriyama of America Inc.
Alfagomma | T350LL / T350LH Series | 225 PSI Premium Paper Mill/Creamery Wash Down Hose - No Nozzle

For general wash down service, using hot water or low pressure saturated steam in processing plants and facilities and in food and dairy plants.

Package Quantity: 200 Foot

Specifications for Variant SKU: T350LL050X200 Kuriyama \| 200 \|
Brand:	Alfagomma
Series:	T350LL Series
Hose Color(s):	White
Internal Diameter:	0.50in - 1/2in
Outer Diameter:	0.91in
Tubing Construction:	EPDM
Cover Construction:	EPDM
Applicable Specs & Approvals:	Applicable 3-A Sanitary Standards, Applicable FDA Requirements

SPECIFICATIONS

Application:	General washdown service, Hot water cleaning, Low-pressure saturated steam use, Processing plants and facilities, Food and dairy plants.	SAE Rating:	-
Other Ratings:	Meets FDA and 3A (18-03) requirements.	Tube:	White EPDM.
Reinforcement:	High tensile textile cords.	Cover:	Red or White EPDM - heat, abrasion and ozone resistant.
Working Pressure:	Constant Pressure - 15 Bar (225 PSI)	Steam Pressure:	Constant Pressure - 6 Bar (90 PSI)
Service Temperature Range:	Water -40°F (-40°C) to +248°F (+120°C) Steam +330°F to (+165°C)	Coupling Suggestions:	Short shank, long shank couplings (NPT, GHT), barbed inserts attached with bands.
Branding:	ALFAGOMMA - ITALY - T350 6 BAR (90 PSI) STEAM 15 BAR (225 PSI) HOT WATER (embossed)

Part Number 200ft	Cover Color	ID		OD		Max Rec. Working Pressure	Weight
Part Number 200ft	Cover Color	(in)	(mm)	(in)	(mm)	PSI	lbs/ft
T350LL050X200	White	1/2"	13mm	0.91"	23mm	225 psi	0.27 lbs/ft
T350LL062X200	White	5/8"	16mm	1.02"	26mm	225 psi	0.31 lbs/ft
T350LL075X200	White	3/4"	19mm	1.22"	31mm	225 psi	0.44 lbs/ft
T350LL100X200	White	1"	25mm	1.46"	37mm	225 psi	0.54 lbs/ft
T350LL125X200	White	1-1/4"	32mm	1.81"	46mm	225 psi	0.63 lbs/ft
T350LL150X200	White	1-1/2"	38mm	2.05"	52mm	225 psi	0.74 lbs/ft
T350LH075X200	Red	3/4"	19mm	1.22"	31mm	225 psi	0.44 lbs/ft
T350LH100X200	Red	1"	25mm	1.46"	37mm	225 psi	0.54 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
